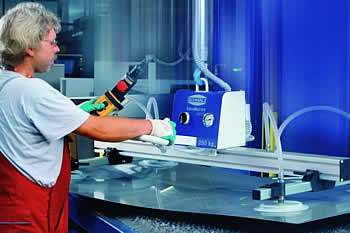

VacuMaster Horizontal Vacuum Lifter
A wide range of devices for almost every application.
The lifting system VacuMaster Horizontal is suitable for many vacuum handling applications. Typical workpieces handled with these devices includes lifting sheetmetal, lifting laminated board, lifting plastic sheets, drums, lifting benchtops and more.
Workpieces can range in shape and size, with weights of up to 750kg and sheet sizes up to 4000mm x 2000mm possible.
Features Include
The lifting system VacuMaster Horizontal is suitable for many vacuum handling applications. Typical workpieces handled with these devices includes lifting sheetmetal, lifting laminated board, lifting plastic sheets, drums, lifting benchtops and more.
Workpieces can range in shape and size, with weights of up to 750kg and sheet sizes up to 4000mm x 2000mm possible.
Features Include
- Long lifetime due to extremely robust construction
- Individual adaptation of the device with a compact modular system
- Audible warning in the case of a power failure
- Large vacuum reservoir
- Safety mechanisms to prevent incorrect operation
- Clearly visible vacuum gauge
- Easy handling thanks to low intrinsic weight
- All controls easily accessible
| Type | Maximum load horiz/vert [kg] | Workpiece format | Handling of the load | Number of suction pads | Overall height [mm] | Intrinsic weight [kg] | |
|---|---|---|---|---|---|---|---|
| Maximum [mm] | Minimum [mm] | ||||||
| VacuMaster Basic/Comfort 125 | 125 / 0 | 4000 x 2000 | 250 x 250 | horizontal | 1, 2, 4, 6, 8 | 410 – 590 | 34 – 84 |
| VacuMaster Basic/Comfort 250 | 250 / 0 | 4000 x 2000 | 360 x 360 | horizontal | 1, 2, 4, 6, 8 | 410 – 590 | 37 – 82 |
| VacuMaster Basic/Comfort 500 | 500 / 0 | 4000 x 2000 | 740 x 590 | horizontal | 2, 4, 6, 8 | 570 – 670 | 69 – 108 |
| VacuMaster Basic/Comfort 750 | 750 / 0 | 4000 x 2000 | 780 x 470 | horizontal | 4, 6, 8 | 570 – 670 | 89 – 120 |
