Drum Handling |
| ||

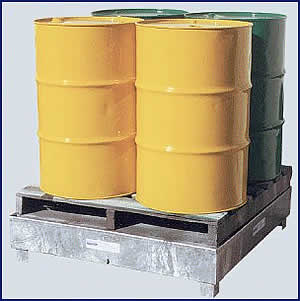

SDBP - Bunded Drum Storage System
Suitable for Pallet Trucks All liquids stored on site need to be safely bunded, (as required by law) and in a unit which will contain at least the largest stored container should it spill. This is now a simple matter with SPILLDOKTOR poly drum bunds. Available in both 2 drum and 4 drum sizes, featuring removable grating and provision for fork tynes, and made from heavy duty polyethylene for durability. Model Description Capacity SDBP2 Polyethylene 2 Drum Bund 240L SDBP4L Polyethylene 4 Drum Bund 230L |
|
| Drum Spill Bins |
Drum Spill Bins Galvanised
Our range of SL Spill Bins provide complete protection against damaging and costly chemical spills and are available to cater for one (1), two (2) or four (4) drums.
Also available to suit the 1000 litre Intermediate Bulk Containers - refer SL-IBC.
Close spacing support bars allow for large or small drums up to 2000kg SWL. If required, timber pallets will fit within the raised skirt, or drums can be placed directly on the support bars.
All models have a spill capacity of at least 110% containment of the largest drum in accordance with Australian Standards, being classified as "portable" units.
SPECIFICATIONS:
Our range of SL Spill Bins provide complete protection against damaging and costly chemical spills and are available to cater for one (1), two (2) or four (4) drums.
Also available to suit the 1000 litre Intermediate Bulk Containers - refer SL-IBC.
Close spacing support bars allow for large or small drums up to 2000kg SWL. If required, timber pallets will fit within the raised skirt, or drums can be placed directly on the support bars.
All models have a spill capacity of at least 110% containment of the largest drum in accordance with Australian Standards, being classified as "portable" units.
SPECIFICATIONS:
- Safe Working Load: 2000kg
- Long Life Zinc Plated Finish (all models)
| Low Profile Bund System |

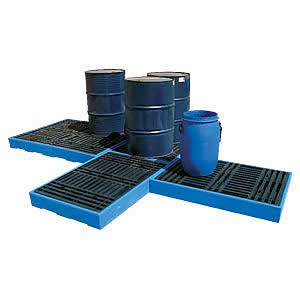

SDBF Low Profile Bund System
Available in 2 drum and 4 drum and 4 drum in-line versions.
These units can be connected with a simple bund to bund connector, which will increase the bund capacity.
Also available is an optional ramp.
Model Description Capacity
SDBF2 Low Profile Polyethylene 2 Drum Bund 150L
SDBF4 Low Profile Polyethylene 4 Drum Bund 300L
SDBF4 Slow Profile Polyethylene 2 Drum In-line Bund 300L
SDBFR Polyethylene Ramp for Low Profile Bund -
SDBFC Connector Kit Low Profile Bunds -
Available in 2 drum and 4 drum and 4 drum in-line versions.
These units can be connected with a simple bund to bund connector, which will increase the bund capacity.
Also available is an optional ramp.
Model Description Capacity
SDBF2 Low Profile Polyethylene 2 Drum Bund 150L
SDBF4 Low Profile Polyethylene 4 Drum Bund 300L
SDBF4 Slow Profile Polyethylene 2 Drum In-line Bund 300L
SDBFR Polyethylene Ramp for Low Profile Bund -
SDBFC Connector Kit Low Profile Bunds -
| drum_dispensing_system.pdf |

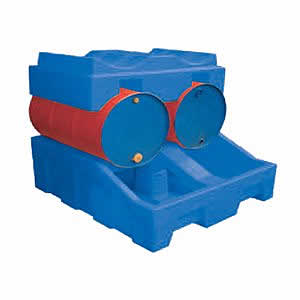

SDDBY& SDDBC Drum Dispensing System
This unit can stack and decant up to 4 drums at one time, with the added assurance that a large spill can be contained. Order units separately as below.
Model Description Capacity
SDDBY Drum Rack & Stack Poly Base Unit 400L
SDDBC Drum Rack & Stack Poly Cradle Unit 230L
This unit can stack and decant up to 4 drums at one time, with the added assurance that a large spill can be contained. Order units separately as below.
Model Description Capacity
SDDBY Drum Rack & Stack Poly Base Unit 400L
SDDBC Drum Rack & Stack Poly Cradle Unit 230L
SDBB Bulk Container Storage System
All 1000L bulk containers must be bunded to comply with regulations which means the bund must contain at least 1000 Litres.
Model Description Capacity
SDBB1 Polyethylene 1 X 1000L Bund 1000L
SDBB1T Dispensing Tray for SDBB1 -
All 1000L bulk containers must be bunded to comply with regulations which means the bund must contain at least 1000 Litres.
Model Description Capacity
SDBB1 Polyethylene 1 X 1000L Bund 1000L
SDBB1T Dispensing Tray for SDBB1 -

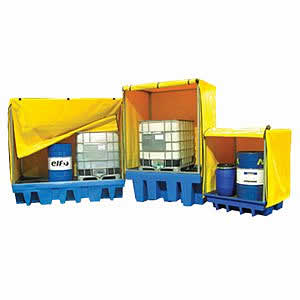

PVC Bund Covers
These units include a knock down galvanised steel frame (Stainless also available) which supports a heavy duty PVC cover with zipper door to the front for quick access.
Model Description
SDBP4LC PVC Cover & Galvanised Frame Suits for 4 Drum Bund SDBP4L
SDBP2C PVC Cover & Galvanised Frame Suits for 2 Drum Bund SDBP2
SDBB1C PVC Cover & Galvanised Frame Suits for 1 X 1000L Bund SDBB1
SDBB2C PVC Cover & Galvanised Frame Suits for 2 X 1000L Bund SDBB2
These units include a knock down galvanised steel frame (Stainless also available) which supports a heavy duty PVC cover with zipper door to the front for quick access.
Model Description
SDBP4LC PVC Cover & Galvanised Frame Suits for 4 Drum Bund SDBP4L
SDBP2C PVC Cover & Galvanised Frame Suits for 2 Drum Bund SDBP2
SDBB1C PVC Cover & Galvanised Frame Suits for 1 X 1000L Bund SDBB1
SDBB2C PVC Cover & Galvanised Frame Suits for 2 X 1000L Bund SDBB2
SDBT230 Spill Containment Caddy
This unit features a unique design which makes use of the lever principle to rotate a standing drum to the horizontal postition, where a swivel wheel allows the whole unit to travel along the floor.
The caddy doubles as a bund, with a 230 litre capacity to contain at least one whole container, should it spill or leak.
Model Description Capacity
SDBT230 Drum Rack & Stack Poly Base Unit 400L
This unit features a unique design which makes use of the lever principle to rotate a standing drum to the horizontal postition, where a swivel wheel allows the whole unit to travel along the floor.
The caddy doubles as a bund, with a 230 litre capacity to contain at least one whole container, should it spill or leak.
Model Description Capacity
SDBT230 Drum Rack & Stack Poly Base Unit 400L
SDCP2 Hard Cover Drum Bunding
Stores 2 drums in a lockable and weatherproof polyethylene bund. Simple to access and built with stays to hold lid open.
Model Description Capacity
SDCP2 Lockable Hardcover Poly Bund with Lid 400L
Stores 2 drums in a lockable and weatherproof polyethylene bund. Simple to access and built with stays to hold lid open.
Model Description Capacity
SDCP2 Lockable Hardcover Poly Bund with Lid 400L
L30 Drum Rack - 250kg Capacity
This sturdily built rack has been designed to facilitate convenient, safe and efficient
stowage of drums and barrels for decanting.
Taking the backbreaking work out of drum handling, they are indispensable in garages,
warehouses and factories.
A standard 75mm nylon wheel is used for ease of replacement.
This sturdily built rack has been designed to facilitate convenient, safe and efficient
stowage of drums and barrels for decanting.
Taking the backbreaking work out of drum handling, they are indispensable in garages,
warehouses and factories.
A standard 75mm nylon wheel is used for ease of replacement.
NF10 Tilting Drum Stand - 250kg Capacity
Tilting drum stands are virtually self-loading as drums can be loaded and transported
by one man, without him touching the drum. They expedite the easy handling of large
and small drums.
Castors with rubber wheels provide smooth movement and easy positioning of stands.
When stand is in the horizontal position, handles can be retracted.
Plastic hand grips resist slipping when drums are being loaded or transported.
Tilting drum stands are virtually self-loading as drums can be loaded and transported
by one man, without him touching the drum. They expedite the easy handling of large
and small drums.
Castors with rubber wheels provide smooth movement and easy positioning of stands.
When stand is in the horizontal position, handles can be retracted.
Plastic hand grips resist slipping when drums are being loaded or transported.
NBF35 Drum Tilter
Fully enclosed chain drive & crank operated worm gearbox to assist tipping drums. 180 degree rotation. Suits steel drums up to 200 litres.
Handles steel drums without complicated adjustments or exchanging attachments. Drums are raised & transported simply by engaging the screw operated rim clamp. Hydraulic foot operated pump raises drum.
Features Specifications
Capacity 350Kg
Lift Height 1425mm
Dimensions 1190 x 890 x 2020mm
Weight 155Kg
Fully enclosed chain drive & crank operated worm gearbox to assist tipping drums. 180 degree rotation. Suits steel drums up to 200 litres.
Handles steel drums without complicated adjustments or exchanging attachments. Drums are raised & transported simply by engaging the screw operated rim clamp. Hydraulic foot operated pump raises drum.
Features Specifications
Capacity 350Kg
Lift Height 1425mm
Dimensions 1190 x 890 x 2020mm
Weight 155Kg
TSD44 Drum Dolly
To suit 205 Litre/44 Gallon Drum.
Smooth Rolling and Strong, Durable Construction.
100mm Diameter Heavy Duty Castors.
To suit 205 Litre/44 Gallon Drum.
Smooth Rolling and Strong, Durable Construction.
100mm Diameter Heavy Duty Castors.
HD80A Drum Carrier & Rotator
Moves, tilts & rotates fully loaded steel drums.
When unlocked the drum may be turned end over end to drain or empty drum.
Features Specifications
Capacity 240kg
Drum Diameter 572mm
Drum Height 915.5mm
Drum Capacity 210 Litres
Weight 50kg
Moves, tilts & rotates fully loaded steel drums.
When unlocked the drum may be turned end over end to drain or empty drum.
Features Specifications
Capacity 240kg
Drum Diameter 572mm
Drum Height 915.5mm
Drum Capacity 210 Litres
Weight 50kg
CA-G36 Drum Picker
Features Specifications
Capacity 300Kg
Lowest Height 265mm
Max Height 375mm
Radius R285mm
Net Weight 52Kg
Features Specifications
Capacity 300Kg
Lowest Height 265mm
Max Height 375mm
Radius R285mm
Net Weight 52Kg
DP30-3 Drum Picker
Features Specifications
Capacity 300kg
Lowest Height 900mm
Maximum Height 1000mm
Radius R285mm
Weight 62kg
Features Specifications
Capacity 300kg
Lowest Height 900mm
Maximum Height 1000mm
Radius R285mm
Weight 62kg

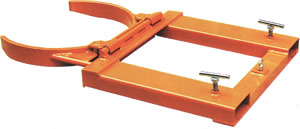

NG10 Single Drum Lifting Clamp
Simple mechanical forklift attachment for safely lifting 205 litre steel drums.
Automatic operation for picking-up and releasing 205 litre steel drums.
Simple mechanical forklift attachment for safely lifting 205 litre steel drums.
Automatic operation for picking-up and releasing 205 litre steel drums.
| Drum Handling PDF |
ZG350 Drum Puller
Features Specifications
Capacity 350kg
Size 210 Litres
Weight 6kg
- All Steel Construction
- Easily Moves opened or closed drums
- Works with shop cranes, hoists or forklift hooks.
Features Specifications
Capacity 350kg
Size 210 Litres
Weight 6kg
|
Drum Lifter - CCK21
|
|
The BGN-1 Single Drum Lifter is a unique beak style drum lifter designed for the easy handling of standard 205 litre drums.
FEATURES:
• Unique beak design provides a high clamping force
• Suits a standard 205 litre steel and some plastic drums
• Operator can safely and precisely place drums without leaving their seat
• Excellent operator visibility for ease in handling
• Minimal maintenance due to few moving parts
• Low contoured drum rest prevents damage to drum and its labelling
• Zinc finish
FEATURES:
• Unique beak design provides a high clamping force
• Suits a standard 205 litre steel and some plastic drums
• Operator can safely and precisely place drums without leaving their seat
• Excellent operator visibility for ease in handling
• Minimal maintenance due to few moving parts
• Low contoured drum rest prevents damage to drum and its labelling
• Zinc finish
The BGN-2 Double Drum Lifter is a unique beak style drum lifter designed for the easy handling of two standard 205 litre drums side by side or a single drum.
FEATURES:
• Unique beak design provides a high clamping force
• Lifts one or two standard 205 litre steel and some plastic drums at the same time
• Operator can safely and precisely place drums without leaving their seat
• Excellent operator visibility for ease in handling
• Minimal maintenance due to few moving parts
• Low contoured drum rest prevents damage to drum and its labelling
• Zinc finish
FEATURES:
• Unique beak design provides a high clamping force
• Lifts one or two standard 205 litre steel and some plastic drums at the same time
• Operator can safely and precisely place drums without leaving their seat
• Excellent operator visibility for ease in handling
• Minimal maintenance due to few moving parts
• Low contoured drum rest prevents damage to drum and its labelling
• Zinc finish

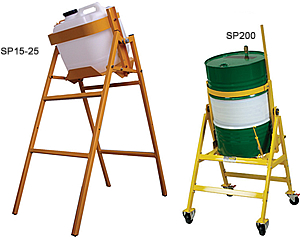

SafePour
SP15-25
This design has been developed to hold most 15 to 25 litre drums which can be rectangle or round and of either plastic or metal. The SP15-25 requires minimal assembly and has a flat-folding option for easy storage.
SP200
The SP200 is designed to hold 200 litre or 44 gallon metal drums which, when decanting, appear virtually weightless. A unique system allows the metal drum to be automatically returned to the safe upright position when released. The SP200 is extremely durable; manufactured with robust welded material and a powder coated finish.
SP Multilifter
The SP Multilifter can be used to load up to 500kg metal drums for a variety of lifting applications. It is designed to eliminate the need for two separate lifting devices and can be used to lift drums with and without lids. It also features a positive lock action which grips the rim of the drum for hands-free safety.
MODEL: SP15-25 SP200 SP MULTILIFTER
Stock Code SAF225 SAF230 SAF250
Rated Capacity 15 – 25 litre 205 litre 500 kg
Net Weight (kg) 8 16 4
SP15-25
This design has been developed to hold most 15 to 25 litre drums which can be rectangle or round and of either plastic or metal. The SP15-25 requires minimal assembly and has a flat-folding option for easy storage.
SP200
The SP200 is designed to hold 200 litre or 44 gallon metal drums which, when decanting, appear virtually weightless. A unique system allows the metal drum to be automatically returned to the safe upright position when released. The SP200 is extremely durable; manufactured with robust welded material and a powder coated finish.
SP Multilifter
The SP Multilifter can be used to load up to 500kg metal drums for a variety of lifting applications. It is designed to eliminate the need for two separate lifting devices and can be used to lift drums with and without lids. It also features a positive lock action which grips the rim of the drum for hands-free safety.
MODEL: SP15-25 SP200 SP MULTILIFTER
Stock Code SAF225 SAF230 SAF250
Rated Capacity 15 – 25 litre 205 litre 500 kg
Net Weight (kg) 8 16 4
| Drum Handling PDF |

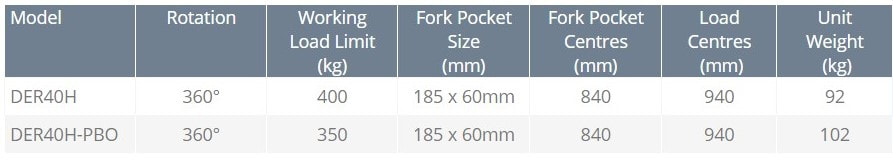

The DER40H Drum Rotator is designed as a fast and economical solution to lift and rotate a 205 litre drum 360 degrees. Rotation of the drum is fully controlled via a large worm-drive gear box which locks the drum in position when operator stops turning the handle, preventing dangerous and uncontrolled movements.
FEATURES:
• Empties a standard 205 litre drums with minimal effort
• Suitable for drum rotation when raised up to chest height
• Rotation carried out via a hand wheel
• Belly strap and eccentric lock secures drum in position
• Locking pin prevents accidental release
• Slip-on attachment allows quick connection to a forklift
• Can be coupled with the PBO Plastic Barrel Option
• Zinc finish
FEATURES:
• Empties a standard 205 litre drums with minimal effort
• Suitable for drum rotation when raised up to chest height
• Rotation carried out via a hand wheel
• Belly strap and eccentric lock secures drum in position
• Locking pin prevents accidental release
• Slip-on attachment allows quick connection to a forklift
• Can be coupled with the PBO Plastic Barrel Option
• Zinc finish
The DER40C Drum Rotator is designed as a fast and economical solution to lift and rotate a 205 litre drum 360 degrees. Rotation of the drum is fully controlled via a large worm-drive gear box which locks the drum in position when operator stops pulling the hand chain, preventing dangerous and uncontrolled movements.
FEATURES:
• Empties a standard 205 litre drums with minimal effort
• Suitable for drum rotation up to 3m above ground
• Rotation carried out via a hand chain
• Belly strap and eccentric lock secures drum in position
• Locking pin prevents accidental release
• Slip-on attachment allows quick connection to a forklift
• Can be coupled with the PBO Plastic Barrel Option
• Zinc finish
FEATURES:
• Empties a standard 205 litre drums with minimal effort
• Suitable for drum rotation up to 3m above ground
• Rotation carried out via a hand chain
• Belly strap and eccentric lock secures drum in position
• Locking pin prevents accidental release
• Slip-on attachment allows quick connection to a forklift
• Can be coupled with the PBO Plastic Barrel Option
• Zinc finish
