KITO PWB Hoists

KITO Chain Hoist | |
File Size: | 177 kb |
File Type: |

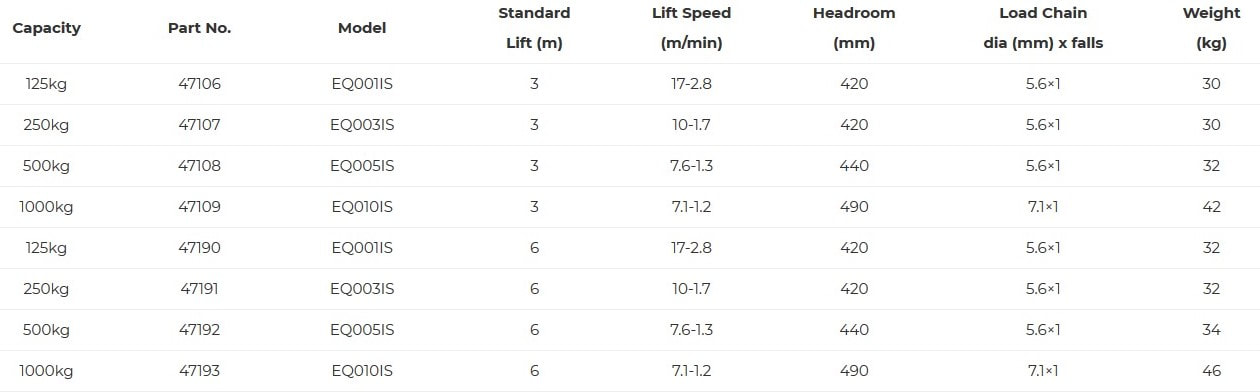

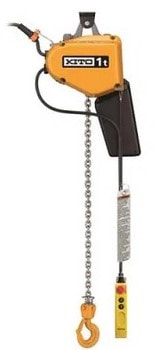

EQ Electric Chain Hoist – Dual Speed with Inverter
- Dual speed with inverter.
- Adjustable speed inverter.
- Counter hour meter.
- IP55 dust and water jet proof body.
- 40/20% duty rating.
- No load, high speed feature.
- Standard 3m and 6m lifts.
- The EQ Series Electric Chain Hoist from Kito is economical, lightweight and compact. It incorporates the quality and safety features expected of a Kito hoist.

Single Phase Electric Chain Hoist | |
File Size: | 137 kb |
File Type: |

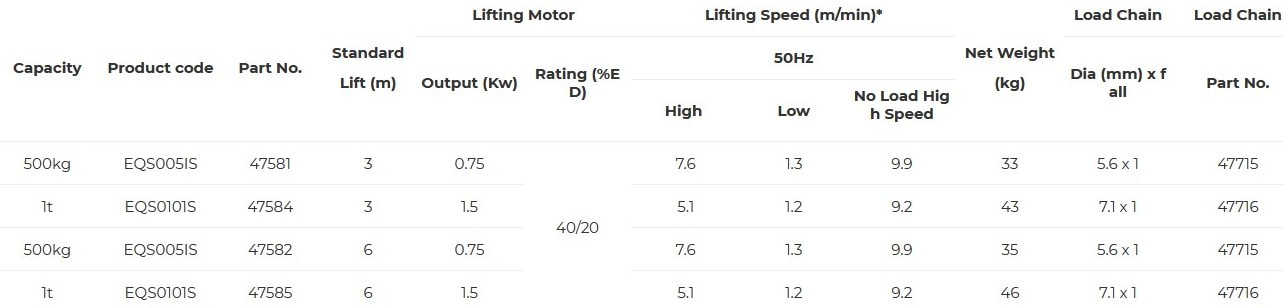

EQS Single Phase Electric Chain Hoist – Dual Speed with Inverter
- Single phase 240V 50Hz.
- Compact and strong.
- Economical and lightweight.
- Dual speed with invertible adjustable speed.
- High-performance mechanical brake.
- World-class KITO PWB original chain.
- Counter hour meter.
- IP55 dust and water jet proof body.
- 40/20% duty rating.
- Standard 3m and 6m lifts.

ER2 Series_electric_chain_hoist.pdf | |
File Size: | 329 kb |
File Type: |

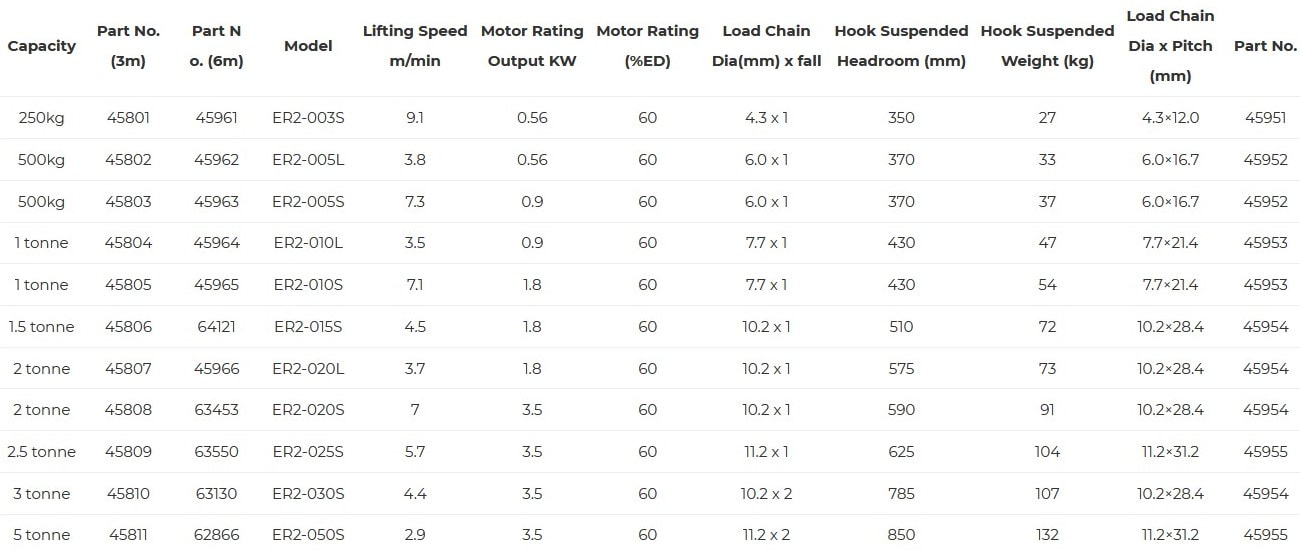

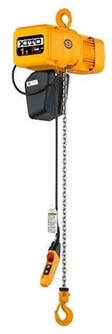

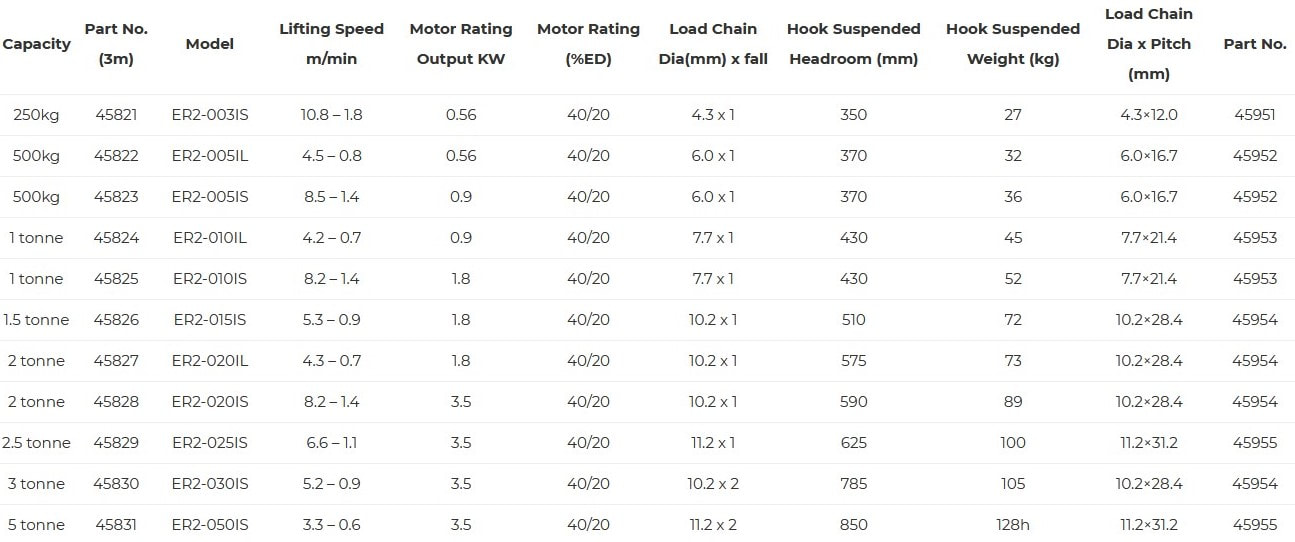

ER2 Series Electric Chain Hoist – Dual Speed
- Five metres of power supply cable as standard.
- Optional length of lift, pendant cable and power supply cable other than standard available on request.
- Steel chain containers are available as an option if your lift is more than the capacity of the standard container volume.
- Patented friction clutch allows for reliable overload protection and safety.
- Thermal protection on hoist motor reduces the risk of motor burnout.
- Upper/lower limit switch.
- Adjustment free brakes – less maintenance.
- Nickel-plated load chain – added resistance to rust and abrasion.
- Fan cooled motor – reduces overheating.
- Condition monitoring with counter/hour meter – built-in.

3_er2_series_electric_chain_hoist_1_.pdf | |
File Size: | 329 kb |
File Type: |

ER2 Series Electric Chain Hoist – Single Speed
- Five metres of power supply cable as standard.
- Optional length of lift, pendant cable and power supply cable other than standard available on request.
- Steel chain containers are available as an option if your lift is more than capacity of the standard container volume.
- Patented Friction Clutch allows for reliable overload protection and safety.
- Thermal Protection on Hoist Motor reduces risk of motor burnout.
- Upper/Lower Limit Switch.
- Adjustment free brakes – less maintenance.
- Nickel plated load chain – added resistance to rust and abrasion.
- Fan cooled motor – reduces overheating.
- Condition monitoring with Counter/Hour Meter – built in.

5_edcl_series_electric_chain_hoist.pdf | |
File Size: | 150 kb |
File Type: |

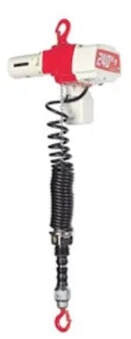

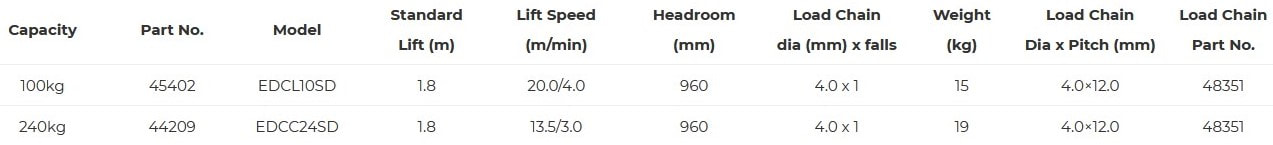

EDCL Series Single Phase Electric Chain Hoist – Dual Speed (Cylinder)
- This compact single phase Electric Hoist available in single or dual speed, is ideal for lifting small loads that are too heavy to be handled manually.
- The EDL range of single phase hoists from KITO feature heavy duty motors with automatic load brake and overload clutch, an IP54 rated lightweight compact aluminium body.
- 30% ED rating.
- Patented ‘Friction Clutch’ allows for reliable overload protection and safety.
- Upper Limit Switch.
- Motor has high performance mechanical brake for safe stopping.
- Nickel plated load chain allows for added resistance to rust and wear.

EDL Series Single Phase Electric Chain Hoist – Dual Speed (Pendant)
- This compact single phase Electric Hoist available in single or dual speed, is ideal for lifting small loads that are too heavy to be handled manually.
- The EDL range of single phase hoists from KITO feature heavy duty motors with automatic load brake and overload clutch, an IP54 rated lightweight compact aluminium body.
- 30% ED rating.
- Patented ‘Friction Clutch’ allows for reliable overload protection and safety.
- Upper Limit Switch.
- Motor has high performance mechanical brake for safe stopping.
- Nickel plated load chain allows for added resistance to rust and wear.

4_edl_series_electric_chain_hoist.pdf | |
File Size: | 117 kb |
File Type: |

EDL Series Electric Chain Hoist – Single Speed (Pendant)
- This compact single phase Electric Hoist available in single or dual speed, is ideal for lifting small loads that are too heavy to be handled manually.
- The EDL range of single phase hoists from KITO feature heavy duty motors with automatic load brake and overload clutch, an IP54 rated lightweight compact aluminium body.
- 30% ED rating.
- Patented ‘Friction Clutch’ allows for reliable overload protection and safety.
- Upper Limit Switch.
- Motor has high performance mechanical brake for safe stopping.
- Nickel plated load chain allows for added resistance to rust and wear.

6_ehl_series_chain_air_hoist.pdf | |
File Size: | 1502 kb |
File Type: |

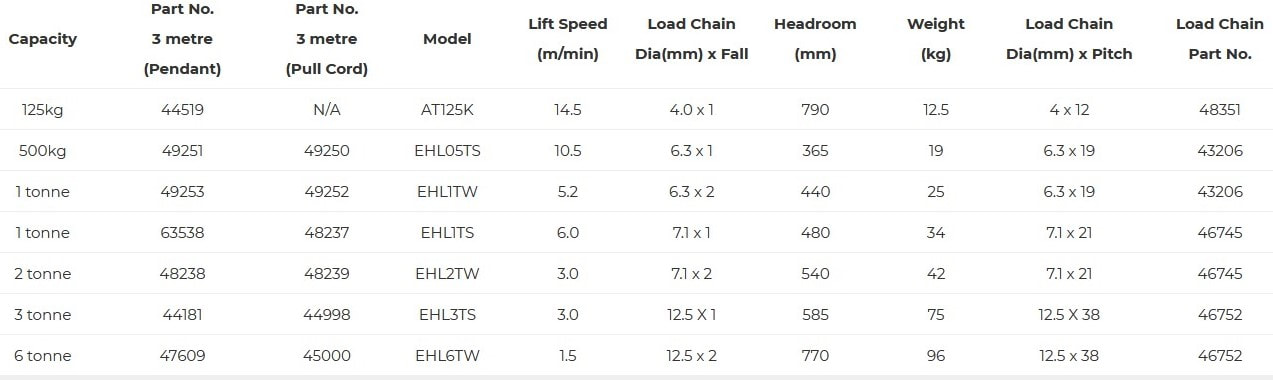

EHL Series Chain Air Hoist
- Able to be used in explosive environments ATEX conformance.
- Compact and lightweight ensures ease of handling.
- Operation speed depends on the amount of pressure applied to the pushbuttons or how hard the control rope is pulled.
- Installation – simply connect the air hose.
- Precise variable lifting and high speed.
- Quality load chain allowing high frequency of use. Upper and lower limit switches.
- EHL Air Hoists from Endo Kogyo are fitted with rotary vane motors in strong lightweight aluminum bodies, for easy handling in a variety of industrial and construction applications.
- Variable speed models available in either cord or pendant controls with optional lift heights.

6_ehl_series_chain_air_hoist_1_.pdf | |
File Size: | 1502 kb |
File Type: |

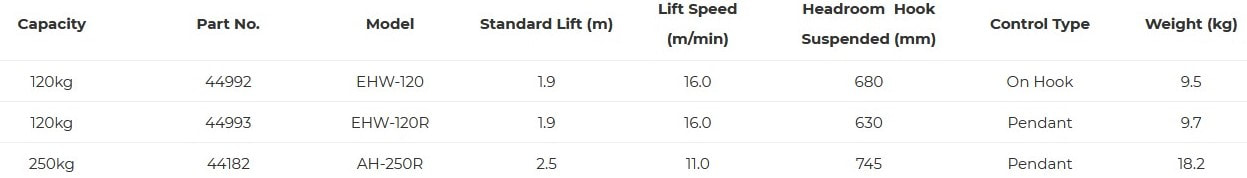

EHW Series Wire Rope Air Hoist
- Heat treated planetary reduction gears are small and lightweight and can take a large speed reduction ratio.
- Control valve is engineered with spool valves of spring return in two positions and three ports. The valve works by controlling the lever switch connected with the spool.
- The cone brake system is suited to wire rope hoists and has a control valve integrated with the proper speed reduction mechanism at air motor, finally achieving the excellent control.
- Reverse winding protection is incorporated in EHW Air Hoist Series. When the wire rope is pulled out 1.9m, the system makes the air motor stop automatically.
- Designed for Wire Rope lift, the ENDO EHW Air Hoist is available in hook or pendant control with a cone brake system.
