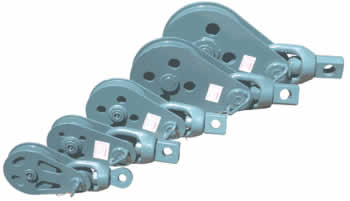

Super Sheave Blocks SSB Series
​

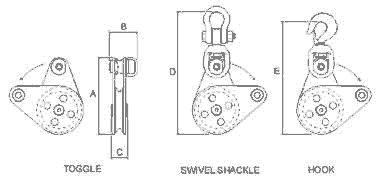

SHEAVE DIA (G)
WIRE ROPE DIA
W.L.L. KG
TYPE
PRODUCT CODE
A
B
C
D
E
WEIGHT KG.
100
10-11
3000
SWIVEL SHACKLE
SSB100S
-
66
53
333
-
4.4
HOOK
SSB100H
-
66
53
-
326
4.9
TOGGLE
SSB100T
188
66
53
-
-
3.4
SHEAVE ONLY
SSB10010
-
-
-
-
-
2
150
12-14
4500
SWIVEL SHACKLE
SSB150S4
-
100
67
418
-
8.8
HOOK
SSB150H4
-
100
67
-
415
9.2
TOGGLE
SSB150T4
256
100
67
-
-
6
SHEAVE ONLY
SSB15012
-
-
-
-
-
2.2
150
16-18
8000
SWIVEL SHACKLE
SSB150S
-
108
88
490
-
12
HOOK
SSBH150H
-
108
88
-
472
12.3
TOGGLE
SSB150T
280
108
88
-
-
8
SHEAVE ONLY
SSB15018
-
-
-
-
-
3.2
200
18-20
8000
SWIVEL SHACKLE
SSB200S
-
108
88
540
-
15.2
HOOK
SSB200H
-
108
88
-
522
15.5
TOGGLE
SSB200T
330
108
88
-
-
11
SHEAVE ONLY
SSB20020
-
-
-
-
-
4.2
250
22
10000
SWIVEL SHACKLE
SSB250S
-
156
107
684
-
31.4
HOOK
SSB250H
-
156
107
-
615
33
TOGGLE
SSB250T
427
156
107
-
-
25
SHEAVE ONLY
SSB25022
-
-
-
-
-
9.4
300
26
15000
SWIVEL SHACKLE
SSB300S
-
164
123
798
-
45
HOOK
SSB300H
-
164
123
-
748
48
TOGGLE
SSB300T
485
164
123
-
-
33
SHEAVE ONLY
SSB30026
-
-
-
-
-
13
350
28
20000
SWIVEL SHACKLE
SSB350S
-
190
125
946
-
73.6
HOOK
SSB350H
-
190
125
-
890
78
TOGGLE
SSB350T
585
190
125
-
-
53
SHEAVE ONLY
SSB35028
-
-
-
-
-
18
400
32
25000
SWIVEL SHACKLE
SSB400S
-
208
136
1014
-
115
HOOK
SSB400H
-
208
136
-
953
124
TOGGLE
SSB400T
660
208
136
-
-
96
SHEAVE ONLY
SSB40032
-
-
-
-
-
32
SWIVEL SHACKLE BLOCKS ARE TO SUIT GRADE S SHACKLES ( NOT INCLUDED ). SUPER SNATCH BLOCKS CAN BE MADE TO SUIT CUSTOMER REQUIREMENTS, THRUST BEARINGS SHOULD BE FITTED IF BLOCKS ARE TO ROTATE UNDER LOAD

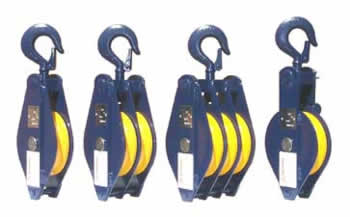

Hand Operated Sheave Blocks
​
SuperLift sheave blocks range from 63mm dia to 254mm dia Hand operated and 152mm dia to 450mm dia Power operated, in snatch, single, double and treble configurations.
​
SuperLift Sheave blocks incorporate the following features:
  • Safety latch fitted to hook as standard
  • Drop forged swivel Hook or Eye
  • Cast iron machined sheaves to suit either wire rope or manilla (fibre) rope
  • Power operated sheaves are fitted with high capacity bushes
  • Power operated axles are fitted with a grease nipple to enable pressure grease lubrication
  • Name plate to show capacities and other relevant details
  • Painted SuperLift blue enamel

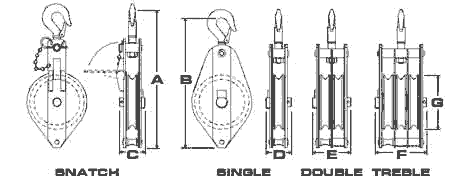

SHEAVE DIA (G)
WIRE ROPE DIA
FIBRE ROPE DIA
TYPE
W.L.L. KG
PRODUCT CODE
A
B
C
D
E
F
63mm
5mm
10mm
SINGLE
250
SBH-001
-
168
-
35
-
-
DOUBLE
250
SBH-002
-
168
-
-
59
-
TREBLE
250
SBH-003
-
168
-
-
-
83
SNATCH
250
SBH-004
173
-
41;
-
-
-
76mm
6mm
12mm;
SINGLE
250
SBH-011
-
189
-
35
-
-
DOUBLE
250
SBH-012
-
189
-
-
59
-
TREBLE
250
SBH-013
-
189
-
-
-
83
SNATCH
250
SBH-014
194
-
41
-
-
-
89mm
7mm
14mm
SINGLE
250
SBH-021
-
253
-
38
-
-
DOUBLE
500
SBH-022
-
253
-
-
64
-
TREBLE
500
SBH-023
-
253
-
-
-
87
SNATCH
250
SBH-024
258
-
51
-
-
-
102mm
8mm
16mm
SINGLE
500
SBH-031
-
276
-
48
-
-
DOUBLE
750
SBH-032
-
276
-
-
79
-
TREBLE
750
SBH-033
-
276
-
-
-
112
SNATCH
500
SBH-034
281
-
58
-
-
-
114mm
9mm
18mm
SINGLE
750
SBH-041
-
322
-
48
-
-
DOUBLE
750
SBH-042
-
322
-
-
79
-
TREBLE
1000
SBH-043
-
322
-
-
-
112
SNATCH
750
SBH-044
339
-
58
-
-
-
127mm
10mm
20mm
SINGLE
1000
SBH-051
-
333
-
61
-
-
DOUBLE
1000
SBH-052
-
333
-
-
95
-
TREBLE
1000
SBH-053
-
333
-
-
-
131
SNATCH
1000
SBH-054
350
-
61
-
-
-
152mm
12mm
24mm
SINGLE
1000
SBH-061
-
380
-
71
-
-
DOUBLE
1500
SBH-062
-
380
-
-
107
-
TREBLE
2000
SBH-063
-
380
-
-
-
144
SNATCH
1000
SBH-064
396
-
71
-
-
-
178mm
14mm
28mm
SINGLE
1500
SBH-071
-
443
-
83
-
-
DOUBLE
2000
SBH-072
-
443
-
-
126
-
TREBLE
2000
SBH-073
-
443
-
-
-
169
SNATCH
1500
SBH-074
443
-
83
-
-
-
203mm
16mm
32mm
SINGLE
2000
SBH-081
-
500
-
94
-
-
DOUBLE
3000
SBH-082
-
500
-
-
157
-
TREBLE
4000
SBH-083
-
500
-
-
-
198
SNATCH
2000
SBH-084
500
-
94
-
-
-
229mm
18mm
36mm
SINGLE
2500
SBH-091
-
607
-
107
-
-
DOUBLE
4000
SBH-092
-
607
-
-
168
-
TREBLE
4000
SBH-093
-
607
-
-
-
229
SNATCH
2500
SBH-094
607
-
107
-
-
-
254mm
20mm
40mm
SINGLE
3000
SBH-101
-
643
-
114
-
-
DOUBLE
4000
SBH-102
-
643
-
-
183
-
TREBLE
5000
SBH-103
-
643
-
-
-
252
SNATCH
3000
SBH-104
643
-
114
-
-
-
Specifications on larger sheave blocks are available upon request.
Powered Sheave Blocks
​

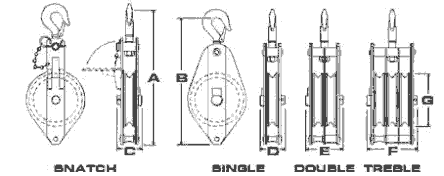

SHEAVE DIA (G)
WIRE ROPE DIA
TYPE
W.L.L. KG
PRODUCT CODE
A
B
C
D
E
F
152mm
8mm
SINGLE
1000
SBP-061
-
380
-
71
-
-
DOUBLE
1500
SBP-062
-
380
-
-
107
-
TREBLE
2000
SBP-063
-
380
-
-
-
144
SNATCH
1000
SBP-064
396
-
71
-
-
-
178mm
10mm
SINGLE
1500
SBP-071
-
443
-
83
-
-
DOUBLE
2000
SBP-072
-
443
-
-
126
-
TREBLE
3000
SBP-073
-
443
-
-
-
169
SNATCH
1500
SBP-074
443
-
83
-
-
-
203mm
12mm
SINGLE
2000
SBP-081
-
500
-
94
-
-
DOUBLE
3000
SBP-082
-
500
-
-
157
-
TREBLE
4000
SBP-083
-
500
-
-
-
198
SNATCH
2000
SBP-084
500
-
94
-
-
-
229mm
13mm
SINGLE
3000
SBP-091
-
607
-
107
-
-
DOUBLE
4000
SBP-092
-
607
-
-
168
-
TREBLE
5000
SBP-093
-
607
-
-
-
229
SNATCH
3000
SBP-094
607
-
107
-
-
-
254mm
14mm
SINGLE
4000
SBP-101
-
643
-
114
-
-
DOUBLE
5000
SBP-102
-
643
-
-
183
-
TREBLE
7500
SBP-103
-
643
-
-
-
252
SNATCH
4000
SBP-104
643
-
114
-
-
-
300mm
16mm
SINGLE
5000
SBP-111
SPECIFICATIONS AVAILABLE UPON REQUEST
DOUBLE
7500
SBP-112
TREBLE
10000
SBP-113
SNATCH
5000
SBP-114
350mm 20mm SINGLE 7500 SBP-121
DOUBLE 10000 SBP-122
TREBLE 15000 SBP-123
SNATCH 7500 SBP-124
400mm 24mm SINGLE 10000 SBP-131
DOUBLE 15000 SBP-132
TREBLE 20000 SBP-133
SNATCH 10000 SBP-134
450mm 26mm SINGLE 10000 SBP-141
DOUBLE 15000 SBP-142
TREBLE 20000 SBP-143
SNATCH 10000 SBP-144
