C Hooks / Pipe Lifters
|
|
|
Nobles offer a range of C-Hooks and roll lifters to suit a variety of needs, designed with the experience that comes from 100 years of being in the business.
You can select from a number of existing designs, or we can manufacture to suit your specific site or process requirements.

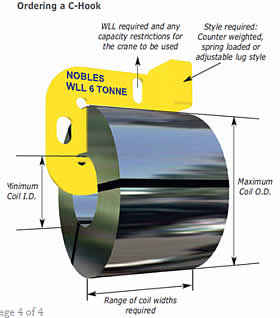

Custom designs can take into account the specific types, sizes and dimensions of your coils, any restrictions on space and headroom, and what sort of adjustment may be needed.
No matter the design, all Nobles C-Hooks are designed, manufactured and tested in Australia to the highest standards, giving you peace of mind, and are made with attention to detail that is unmatched.
Pipe Laying Hook RLH Probst
Ensures greater saftey and saves time when laying pipes.
For pipes up to 1 metre length.
Standard Specifications:
- Eyelet for attaching to crane hook.
- Safety Chain.
- Handle for safer insertion into pipe.
|
|
|
Pipe Laying Hook RLHA
Probst With automatic centre of gravity balance and adjustable stop buffer.
Standard Specifications:
|
|
| Type | Width W mm (in) | Carrying Capacity kg (lbs) | Minimum Load kg (lbs) | Dead Weight kg (lbs) | Order Number |
|---|---|---|---|---|---|
| RLH 1 A | 300 (12") | 1,000 (2,200) | 350 (770) | 180 (395) | 5400.0010 |
| RLH 3 A | 460 (18") | 3,000 (6,600) | 1,000 (2,200) | 310 (680) | 5400.0011 |
| RLH 7,5 A | 500 (20") | 7,500 (16,500) | 3,000 (6,600) | 730 (1,610) | 5400.0012 |
|
Round Grab RG 20-80
Probst For pipes with an outside diameter of 200 - 800mm. Exchangeable rubber metal bars to prevent coated or stoneware pipes from damage.
Standard Specifications:
|
|
| Type | Outer Diameter of Pipes mm (in) | Gripping Width mm (in) | Carrying Capacity kg (lbs) | Dead Weight kg (lbs) | Order Number |
|---|---|---|---|---|---|
| RG 20-80 | 200-800 (7¾-31½") | 420 (16½") | 1,500 (3,300) | 92 (205) | 5425.0001 |
Round Grab RG
Probst
Specially for laying sewer pipes.
Wider gripper arms mean that coated pipes are not damaged.
Specially designed to lay small diameter sewer pipes.
Standard Specifications:
Probst
Specially for laying sewer pipes.
Wider gripper arms mean that coated pipes are not damaged.
- Can be used in narrow ditches as little room is needed on either side for the grab to work.
Specially designed to lay small diameter sewer pipes.
- Large opening range
- Mechanically operated
Standard Specifications:
- Lifting eye for attaching crane hook.
- No additional operating personnel are needed.
| Type | Outer Diameter of Pipes mm (in) | Gripping Width mm (in) | Carrying Capacity kg (lbs) | Dead Weight kg (lbs) | Order Number |
|---|---|---|---|---|---|
| RG 1,5-40 | 200-430 (7¾-17") | 230 (9") | 1,500 (3,300) | 38 (85) | 5430.0001 |
| RG 1,5-80 | 300-800 (11¾-31½") | 350 (13¾") | 1,500 (3,300) | 90 (200) | 5430.0007 |
| RG 3-120 | 600-1,250 (23½-49") | 550 (21") | 3,000 (6,600) | 300 (660) | 5430.0003 |
| RG 5-170 | 800-1,750 (31½-69") | 700 (27½") | 5,000 (11,000) | 620 (1,370) | 5430.0005 |
| RG 10-200 | 1,000-2,000 (39-79") | 750 (29½") | 10,000 (22,000) | 1,080 (2,380) | 5430.0006 |
| RG 12-250 | 1,500-2,500 (59-98") | 750 (29½") | 12,000 (26,450) | 1,450 (3,200) | 5430.0004 |
Manhole and Cone Chain Clamp SRG
Probst
For transporting manhole rings and cones.
New: Manhole and Chain Clamp SRG-uni, extremely easy handling and light-weight.
Automatically adjustable clamping range of the claws to the thickness of the pipe walls.
Type 3/160 and 3L/160 also with automatic adjustment, the others with manual adjustment (not suitable for green products).
Probst
For transporting manhole rings and cones.
New: Manhole and Chain Clamp SRG-uni, extremely easy handling and light-weight.
Automatically adjustable clamping range of the claws to the thickness of the pipe walls.
Type 3/160 and 3L/160 also with automatic adjustment, the others with manual adjustment (not suitable for green products).
| Type | Gripping Range ID of manhole mm (in) | Number of Claws | Opening Width of Claws mm (in) | Carrying Capacity kg (lbs) | Dead Weight kg (lbs) | Order Number |
|---|---|---|---|---|---|---|
| SRG-uni 1,5 | 800-2,000 (31½-79") | 3 | 40-120 (1½-4¾") | 1,500 (3,300) | 21 (45) | 5440.0015 |
| SRG-uni 3 | 800-2,000 (31½-79") | 3 | 60-180 (2¼-7") | 3,000 (6,600) | 40 (88) | 5440.0014 |
| SRG 1,5 | 400-2,000 (15¾-79") | 3 | 40-120 (1½-4¾") | 1,500 (3,300) | 31 (70) | 5440.0001 |
| SRG 3 | 400-2,000 (15¾-79") | 3 | 50-120 (2-7") | 3,000 (6,600) | 53 (115) | 5440.0002 |
| SRG 3L | 400-3,000 (15¾-118") | 3 | 50-120 (2-7") | 3,000 (6,600) | 57 (125) | 5440.0003 |
| SRG 3/160 | 400-2,000 (15¾-79") | 3 | 60-120 (2¼-6¼") | 3,000 (6,600) | 50 (110) | 5440.0011 |
| SRG 3L/160 | 400-3,000 (15¾-118") | 3 | 60-120 (2¼-6¼") | 3,000 (6,600) | 52 (115) | 5440.0012 |
