​Lever Blocks

Vital Lever Blocks PDF
File Size: 195 kb
File Type: pdf
Download File

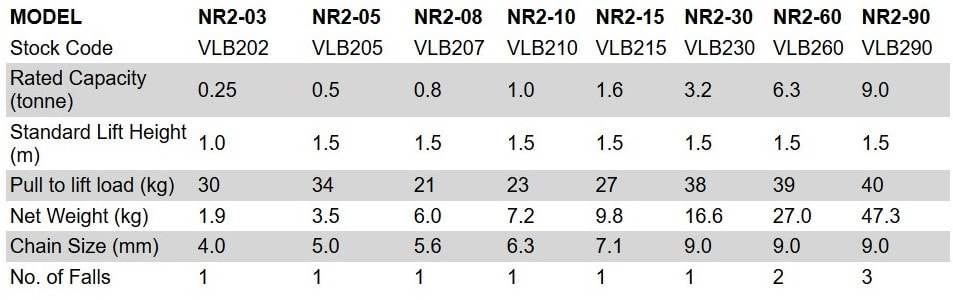

Vital Lever Blocks NR-2 Series
​
The NR-series lever blocks feature the “free-wheeling” braking system which enables fast and easy operation.
There is a minimum load requirement of 10% of the Working Load Limit to ensure that the braking system remains operative and continues to support the load.
​
These lever blocks are ideally suited for the shipbuilding, construction, mining and power transmission industries.
  • Manufactured in Japan using optimum high quality steel which conforms to the strict JIS & ISO regulations.
  • All Vital models are manufactured to comply with AS1418.2.
  • One-touch operation for free chain adjustment.

  • Vital lever blocks can be supplied with overload protection for added security of use (excluding 250kg and 500kg models).
  • The unique design of the bottom hook prevents slipping and ensures safe operation.
  • Hardened alloy steel load chain with embossed identification, marked to the relevant standards.
  • Load Chain Exceeds Australian Standards with 5:1 Safety Factor.

  • Minimum load requirement of up to 10% of the Working Load Limit to ensure the operation of the braking system. E.g. a 1.5 tonne lever block requires a minimum load of 150kg.

  • Light loading; not suitable for tandem operations. If one of the lever blocks used in the tandem experiences an increase in the shared load and the other is reduced below the minimum load, inoperative breaks may occur and this could cause for the load to fall. For these applications we recommend the Vital Lever Blocks VR-2 series below.

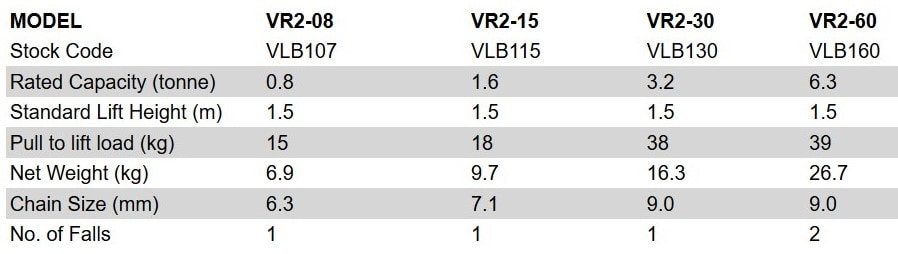

Vital Lever Blocks VR-2 series

The VR-series lever blocks feature a “lock-in and lock-out” braking system which is the more traditional style with a free-wheeling system requiring the disengagement of the gear drive mechanism which is impossible with any load suspended on it.
These lever blocks are ideally suited for the (underground) mining, aerospace and energy industries.
​
  • Manufactured in Japan using optimum high quality steel which conforms to the strict JIS & ISO regulations.
  • All Vital models are manufactured to comply with AS1418.2.
  • Vital lever blocks can be supplied with overload protection for added security of use (excluding 250kg and 500kg models).
  • The unique design of the bottom hook prevents slipping and ensures safe operation.
  • Easy two-step operation to prevent accidental free-wheeling.
  • Hardened alloy steel load chain with embossed identification, marked as to the relevant standards.
  • Load Chain Exceeds Australian Standards with 5:1 Safety Factor.
  • The Vital VR-2 series are suitable for tandem lifting applications.
File Size: 102 kb
File Type: jpg
Download File

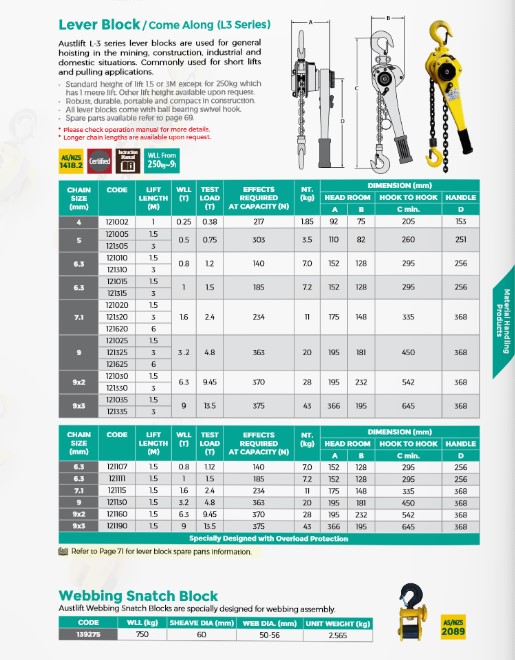

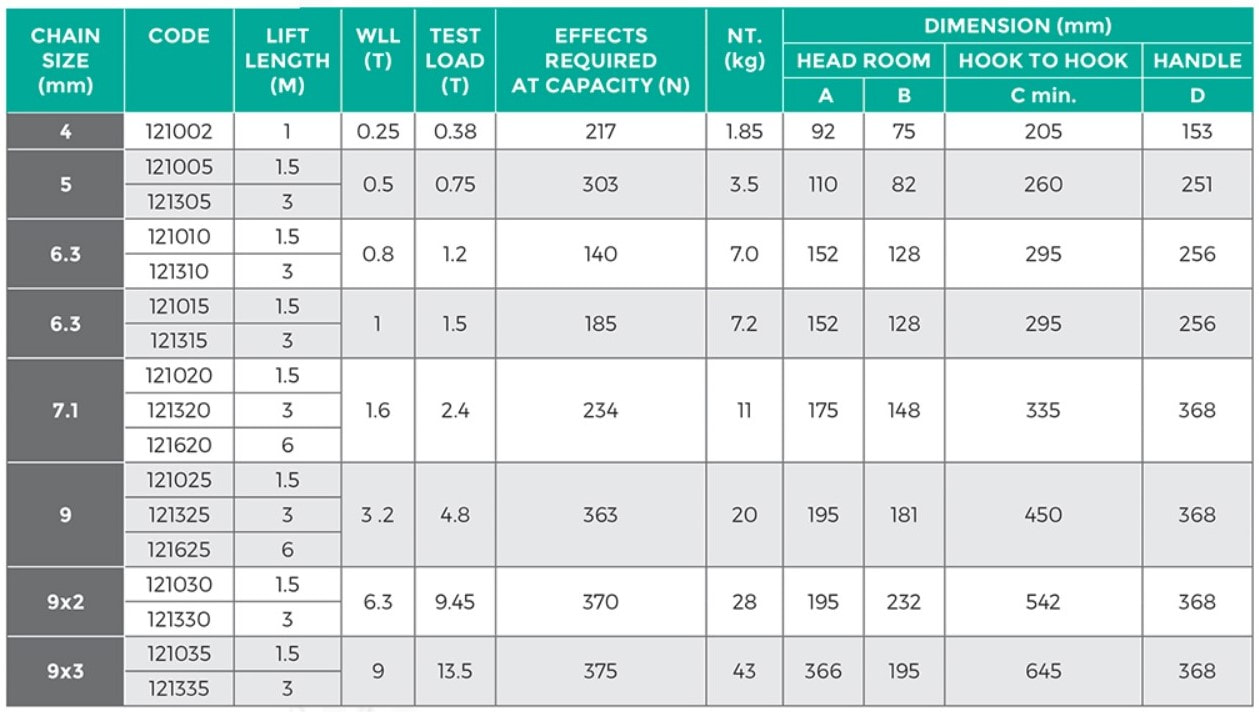

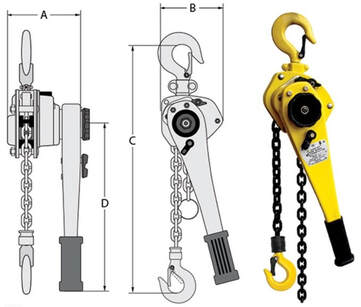

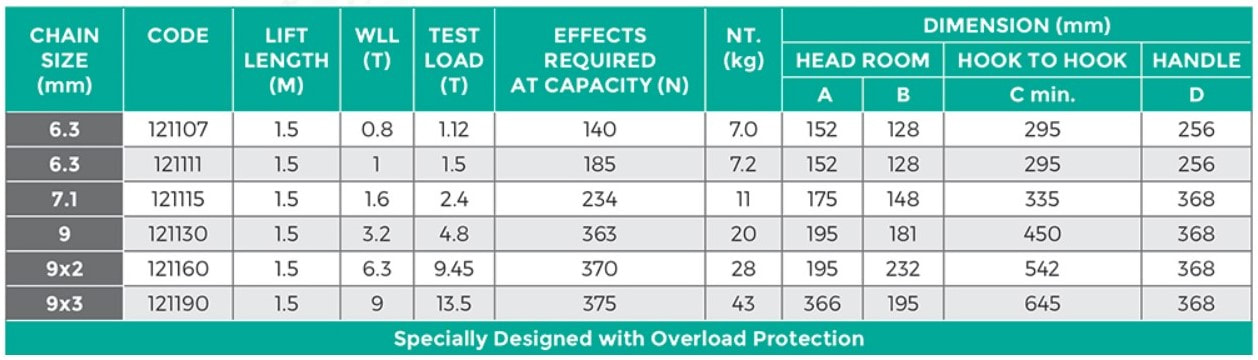

Auslift Lever Block

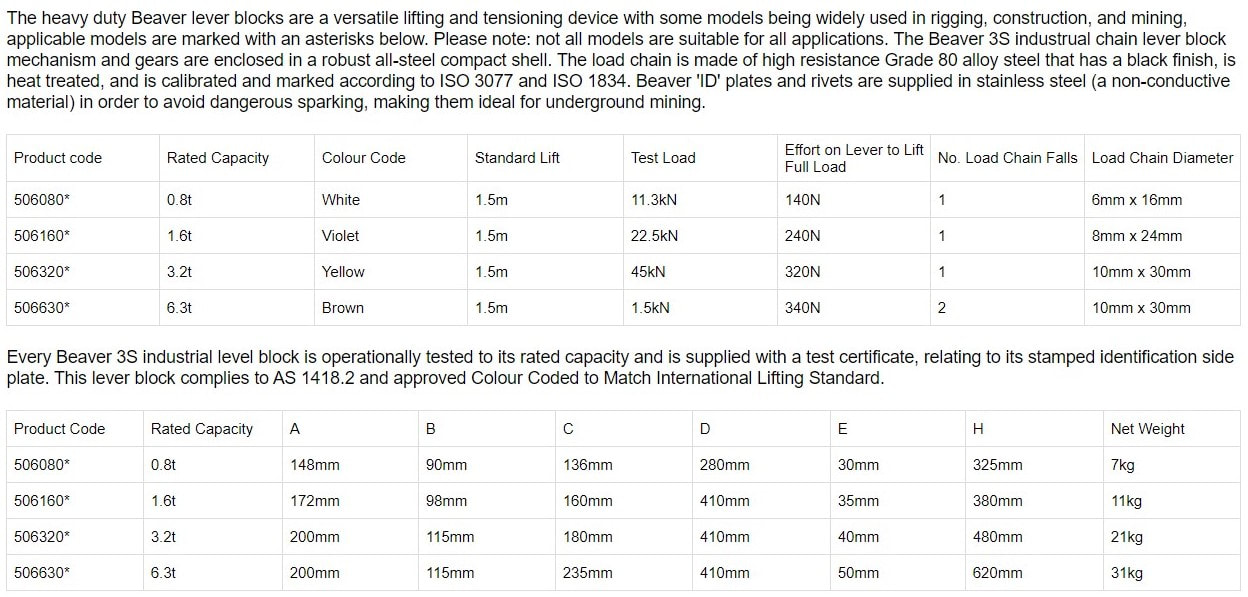

Beaver 3S Lever Blocks
Beaver Lever Blocks Data Sheet
File Size: 1309 kb
File Type: pdf
Download File

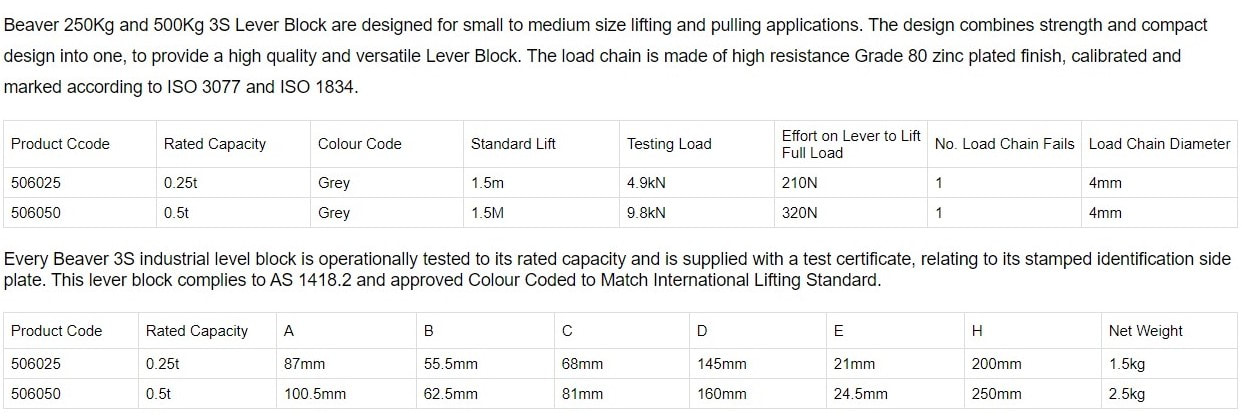

Beaver 250Kg and 500Kg 3S Lever Block are designed for small to medium size lifting and pulling applications. The design combines strength and compact design into one, to provide a high quality and versatile Lever Block. The load chain is made of high resistance Grade 80 zinc plated finish, calibrated and marked according to ISO 3077 and ISO 1834.
