Floor Mount Aluminium Capacity up to 650kg

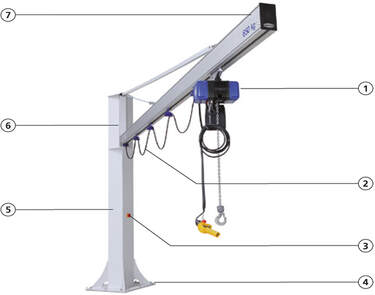

(1) Chain hoist
(2) Energy supply

• Trailing cable or conductor line


(3) Motor protection switch
(4) Anchor-Ready base plate

• Dimensions: 400 x 400 mm to 950 x 950 mm


(5) Coated steel crane column

• Overall height: 5,250 mm
• Lower edge of jib: max. 4,000 mm
• Alternatively with console for wall mounting

(6) Aluminum pivot bearing

• Column mounted jib crane swivel angle: 270°
• Wall mounted jib crane swivel angle: 180°
• Can be limited

(7) Aluminum jib

• Length: 2,000 mm to 8,000 mm
