​Panel Lifter Swivel & Rings

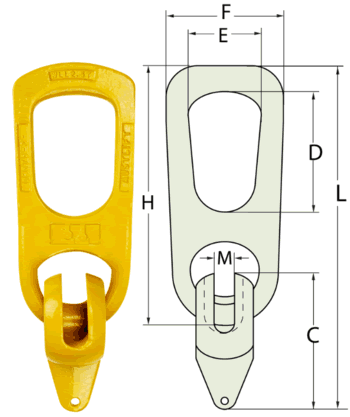

Swivel Panel Lifter

Austlift Panel Lifters are a versatile lifting product for lifting pre-cast concrete products such as construction panels, pipes, columns etc.
​
  • Marked with workload limit, serial number and Austlift branded.
  • Made from G80 alloy steel with a safety factor of 5 to 1.
  • Conforms to AS3580, Test Certificates available with each unit.
CODE WLL Wt. DIMENSIONS
C D E F H M L
tonne kg mm mm mm mm mm mm mm
141001 2.5 1.3 99 85 57 88 190 16 220
141001 2.5 1.3 99 85 57 88 190 16 220
141005 5 3.24 133 88 110 110 233 22 271
141010 10 176 176 116 161 161 336.5 30 386
141020 20 228 228 133.5 107.5 182 437 42 497

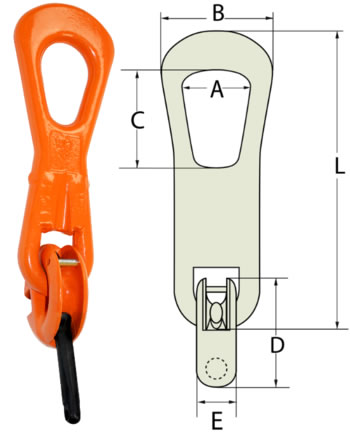

Ring Panel Lifter

Austlift Ring Clutch is a lifting device which is used together with Austlift Cast Plate Anchors. Ring Clutches are used for lifting large precast concrete panels. The Ring Head of the clutch has a locking bolt, which helps to safely lock into plate anchors while the concrete panels are in the lifting process. Austlift Ring Clutches are available in a variety of lifting capacities to suit your work.
​
  • Capacities available from 2.5 tonne to 10 tonne.
  • All clutches are proof loaded, Test Certificate supplied.
  • Ring Clutches have a safety factor of 5 to 1.
CODE WLL Wt. DIMENSIONS
tonne kg C D E F H M L
mm mm mm mm mm mm mm
141001 1.3 0.89 80.4 70.5 45 73 157 11.5 181
141002 2.5 1.3 99 85 57 88 190 16 220
141005 5 3.24 133 88 69 110 233 22 271
141010 10 10 176 116 83 161 336.5 30 386
141020 20 20.37 228 133.5 107.5 182 437 42 497
Panel Lifter Grade 80 Alloy Steel
Code Description
25251 1-1.3 tonne Panel Clutch
25252 1.5-2.5 tonne Panel Clutch
25253 3-5 tonne Panel Clutch
25254 6-10 tonne Panel Clutch
