​Driveable Vertical Mast Lifts JLG

1230es Flyer
File Size: 1843 kb
File Type: pdf
Download File

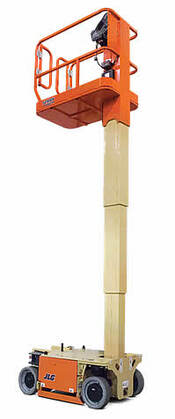

1230ES Driveable Vertical Mast Lift

Key Specs
  • Machine Width: 0.76 m / 2 ft 6 in.
  • Platform Height: 3.66 m / 12 ft

Key Features
  • Low maintenance, energy efficient and environmentally clean
  • Longer running time than any lift in its class keeps you on the job longer, increasing your productivity
  • Lightweight design for transport in freight elevators

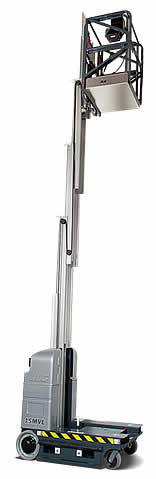

15MVL Driveable Vertical Mast Lift

​Key Specs
  • Machine Width: 0.75 m / 2 ft 6 in.
  • Platform Height: 4.67 m / 15 ft 4 in.
​
Key Features
  • Five platform options with exclusive “Quick Change” mountings for one-minute change-outs
  • Exclusive Point & Go® single joystick control operates drive and steer, and lift and lower
  • Rigged mast for operator comfort and stability
Dimensional Data
Wheel Size - Front Caster 8 x 2.5"
Ground Clearance 0.05 m / 2 in.
Ground Entry Height 0.48 m / 1 ft 7 in.
Machine Height 1.98 m / 6 ft 6 in.
Machine Length 1.36 m / 4 ft 6 in.
Machine Width 0.75 m / 2 ft 6 in.
Platform Dimension A 0.66 m / 2 ft 2 in.
Platform Dimension B 0.71 m / 2 ft 4 in.
Platform Height 4.67 m / 15 ft 4 in.
Wheel SIze - Rear 12.62 x 4"
Reach Specifications
Platform Height 4.67 m / 15 ft 4 in.
Working Height 6.5 m / 21 ft 4 in.
Performance
Drive Speed - Platform Elevated 0.97 km/h / 1 mph
Drive Speed - Platform Lowered 5.63 km/h / 4 mph
Drive System 4 Brush Direct Electric
Gradeability 20 %
Maximum Drive Height 4.67 m / 15 ft 4 in.
Maximum Lift Height 4.66 m / 15 ft
Platform Capacity 226.80 kg / 500 lb
General
Machine Weight 1054.60 kg / 2325 lb
Power Source
Batteries Two Sealed 100 AH 12 Volt

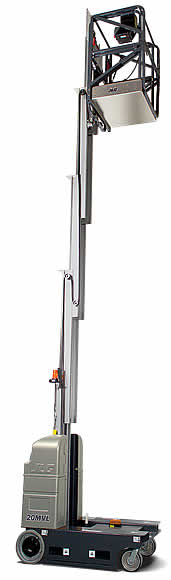

20MVL Driveable Vertical Mast Lift

​Key Specs
  • Machine Width: 0.75 m / 2 ft 6 in.
  • Platform Height: 5.94 m / 19 ft 6 in.
​
Key Features
  • Five platform options with exclusive “Quick Change” mountings for one-minute change-outs
  • Exclusive Point & Go® single joystick control operates drive and steer, and lift and lower
  • Rigged mast for operator comfort and stability
Dimensional Data
Wheel Size - Front Caster 8 x 2.5"
Ground Clearance 0.05 m / 2 in.
Ground Entry Height 0.46 m / 1 ft 6 in.
Machine Height 1.98 m / 6 ft 6 in.
Machine Length 1.36 m / 4 ft 6 in.
Machine Width 0.75 m / 2 ft 6 in.
Platform Dimension A 0.66 m / 2 ft 2 in.
Platform Dimension B 0.71 m / 2 ft 4 in.
Platform Height 5.94 m / 19 ft 6 in.
Wheel SIze - Rear 12.62 x 4"
Reach Specifications
Platform Height 5.94 m / 19 ft 6 in.
Working Height 7.65 m / 25 ft 1 in.
Performance
Drive Speed - Platform Elevated 0.97 km/h / 1 mph
Drive Speed - Platform Lowered 5.63 km/h / 4 mph
Drive System 4 Brush Direct Electric
Gradeability 20 %
Maximum Drive Height 5.94 m / 19 ft 6 in.
Maximum Lift Height 5.94 m / 20 ft
Platform Capacity 158.76 kg / 350 lb
General
Machine Weight 1054.60 kg / 2325 lb
Power Source
Batteries Two Sealed-100 AH 12 Volt
