​Air Hoists & Trolleys

Air Hoists Product Sheet
File Size: 246 kb
File Type: pdf
Download File

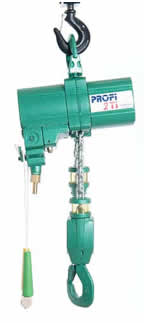

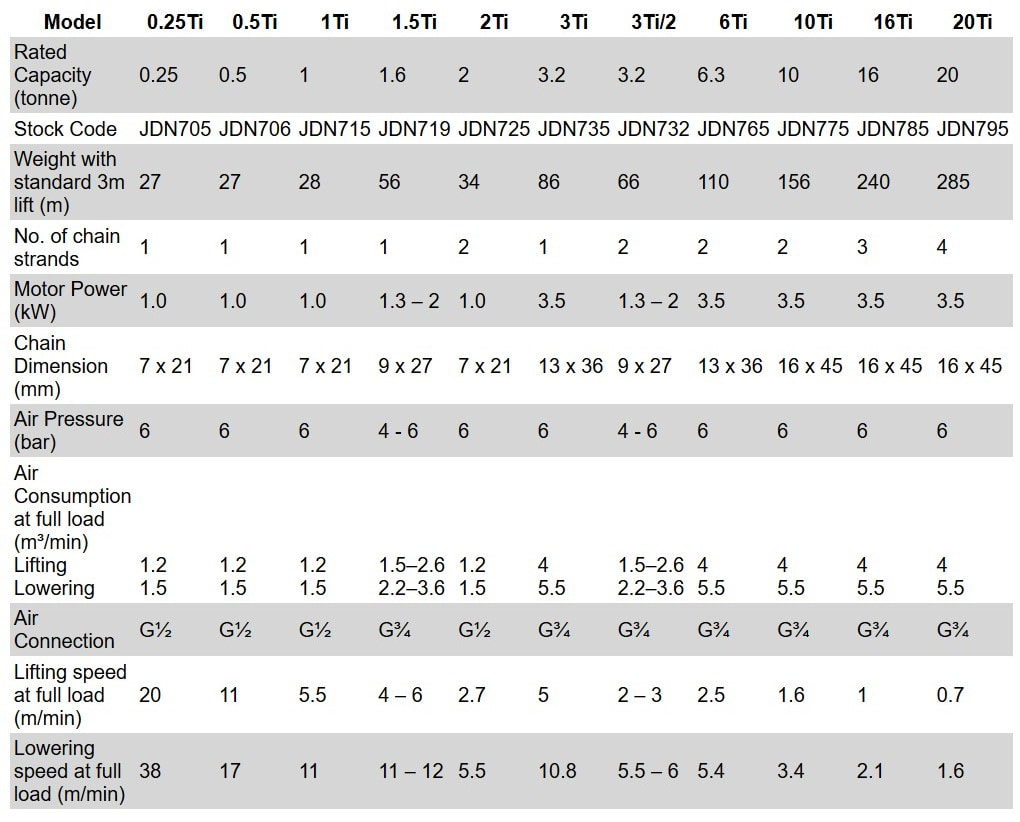

JDN Air Hoist Models
​
  • Manufactured in Germany, under strict quality control with demanding tolerances.
  • All JDN models are manufactured to comply with AS1418.2.
  • Patented pre-lube motor design for low maintenance, oil-free operation.
  • 100% duty rating and unlimited duty cycle suits all environmental conditions.
  • Only six atmospheres of compressed air required.
  • Insensitive to dust, humidity and temperatures ranging from -20 °C up to + 70 °C.
  • ATEX–approved models available, suitable for application in dangerous and explosive environments
  • Self-cooling economic air motor which will not overheat.
  • Fail-safe brake, in case of air supply failure.
  • From 1 tonne upwards available with overload protection.
  • Low decibel rating.
  • F-type sensitive infinitely variable speed control for the precise positioning of loads.
  • Cord control or Brass Pendant control available, as well as an electro pneumatic interface for Radio Remote control as an option.
  • Easy operation and low maintenance design.

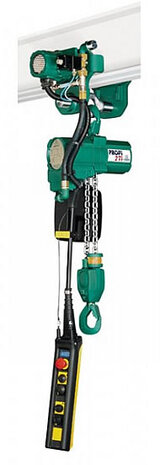

JDN Motorised Hoist Trolley

JDN Trolleys are available for both the PROFI and Mining Air Hoists as a manual option (LN) for pushing or pulling by hand.

Geared trolleys (LH) are also available for load movement by operating the hand chain mechanism and JDN also offers a motorised trolley (LM) which is powered by an air motor.

The carrying capacities go up to 20 tonne.
​
Product Features
  • Manufactured in Germany, under strict quality control with demanding tolerances.
  • All JDN trolleys are manufactured to comply with AS1418.2.
  • Easy to install.
  • Fitted with Anti-climb and anti-drop devices as standard.
  • Robust manufacture requiring little maintenance.
  • Able to negotiate curves.
  • Rack and pinion drive and spark resistance package available as options.
  • Four coat epoxy paint finish available for offshore protection.
  • The air supply can be fed by various systems; energy chain, c-rail, square rail, spiral hose or hose trolleys.
​JDN LN Manual Trolleys
​

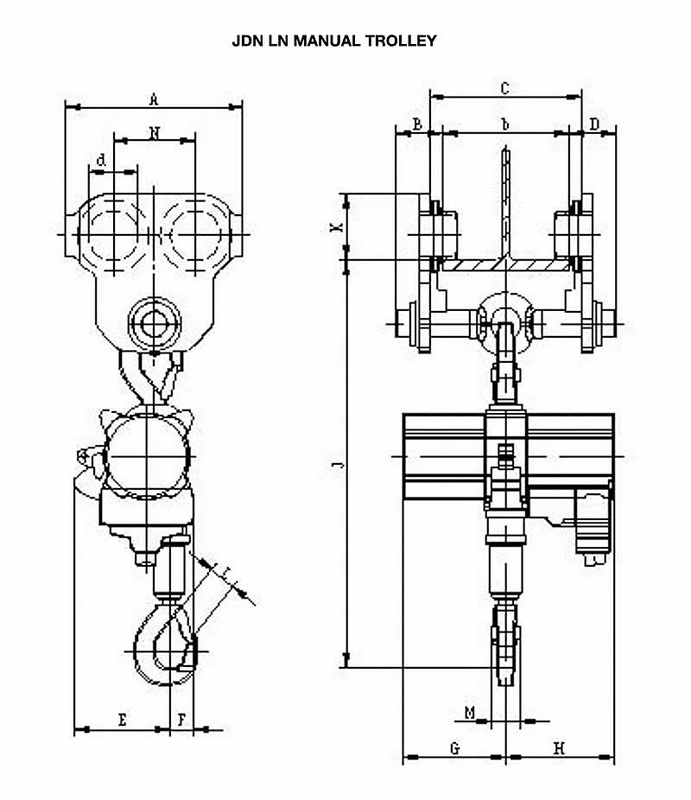

Dimensions: JDN LN MANUAL TROLLEYS (in mm)
*Chain buckets increase the hoist headroom.

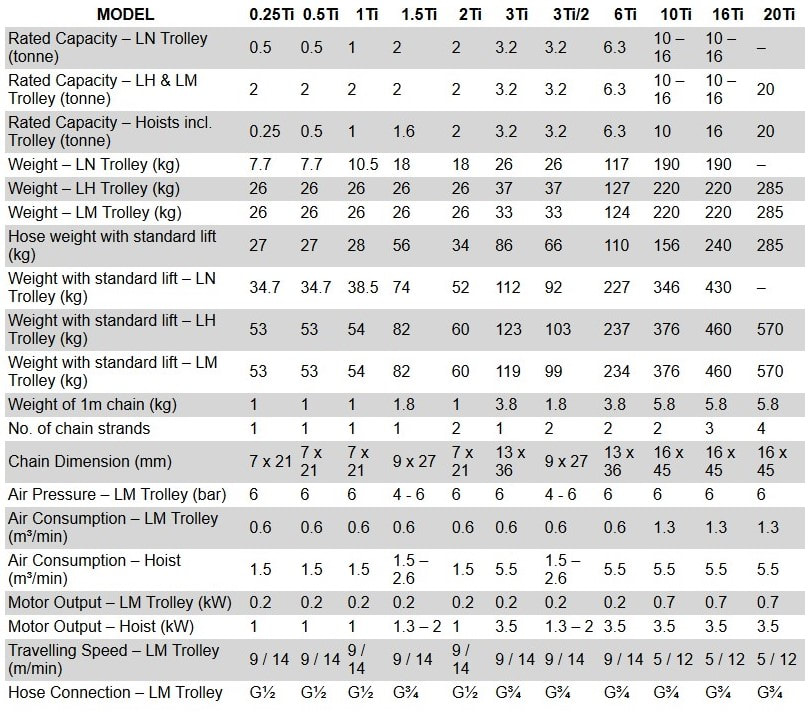

JDN Trolleys - Product List
File Size: 247 kb
File Type: pdf
Download File
MODEL 0.25Ti 0.5Ti 1Ti 1.5Ti 2Ti 3Ti 3Ti/2 6Ti 10Ti 16Ti
With trolley LN 0.5T LN 0.5T LN 1T LN 2T LN 2T LN 3.2T LN 3.2T LN 6.3T LN 10-16T LN 10-16T
A 260 260 260 310 310 292 292 500 490 490
B max. 119 119 122 122 162 113 162 141 142 142
C b + 28 b + 28 b + 28 b + 26 b + 26 b + 60 b + 60 b + 70 b + 70 b + 70
d 55 55 68 80 80 84 84 165 165 165
D max. 199 199 199 122 122 113 113 141 142 142
E 137 137 137 170 137 187 140 154 197 199
F 39 39 39 45 46 46 75 79 109 109
G 145 145 145 200 145 233 200 233 308 382
H 152 152 152 212 152 250 212 250 267 310
J* (mounted) - - - - - 635 613 763 929 982
J* (suspended) 530 530 530 588 597 798 - 919 1176 1260
K 67.5 67.5 81.5 94 94 108 107 188 188 188
L 28 28 28 26 28 30 28 40 44 53
M 42 42 42 40 42 42 42 51 66 82
N 130 130 130 150 150 136 136 236 236 236
​JDN LH Geared Trolleys
​

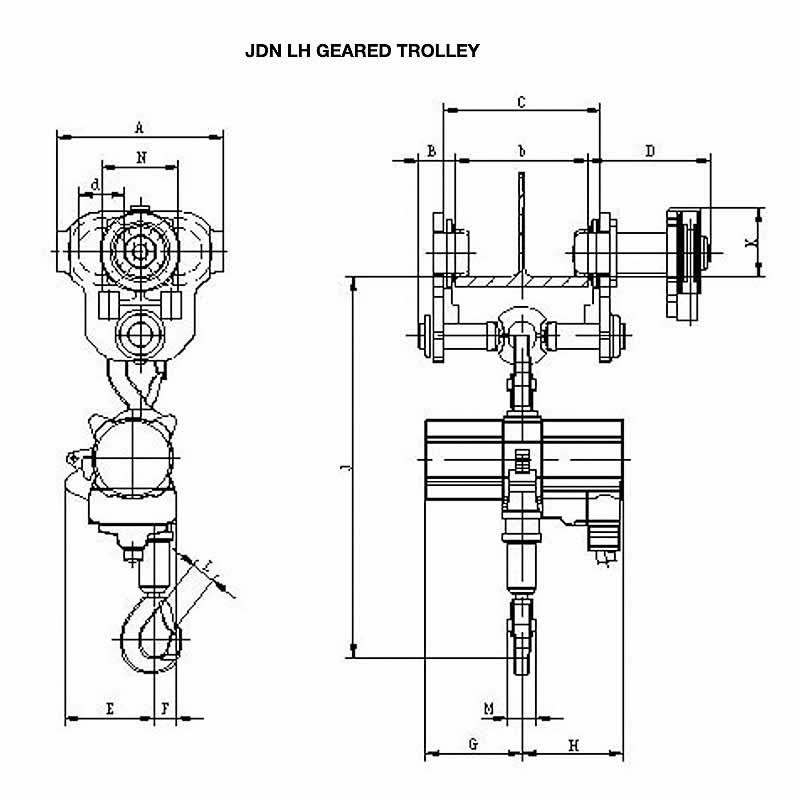

Dimensions: JDN LH GEARED TROLLEYS (in mm)
*Chain buckets increase the hoist headroom.
MODEL 0.25Ti 0.5Ti 1Ti 1.5Ti 2Ti 3Ti 3Ti/2 6Ti 10Ti 16Ti 20Ti
With trolley LH 2T LH 2T LH 2T LH 2T LH 2T LH 3.2T LH 3.2T LN 6.3T LH 10-16T LH 10-16T LH 20T
A 250 250 250 250 250 292 292 500 490 490 600
B max. 130 130 130 130 130 113 113 141 142 142 132
C b + 36 b + 36 b + 36 b + 36 b + 36 b + 60 b + 60 b + 70 b + 70 b + 70 b + 68
d 70 70 70 70 70 84 84 165 165 165 185
D 284 284 284 283 284 294 297 307 320 320 320
E 137 137 137 170 137 187 140 154 197 199 180
F 39 39 39 45 46 46 75 79 109 109 135
G 145 145 145 200 145 233 200 233 308 382 382
H 152 152 152 212 152 250 212 250 267 310 310
J* (mounted) - - - - - 635 613 763 929 982 1125
J* (suspended) 563 563 563 602 611 798 - 919 1176 1171 1475
K 103 103 103 103 103 110 110 215 215 215 226
L 28 28 28 26 28 30 28 40 44 53 75
M 42 42 42 40 42 42 42 51 66 82 86
N 116 116 116 116 116 136 136 236 236 236 274
JDN Trolleys - Product List
File Size: 247 kb
File Type: pdf
Download File
​JDN LM Motorised Trolleys
​

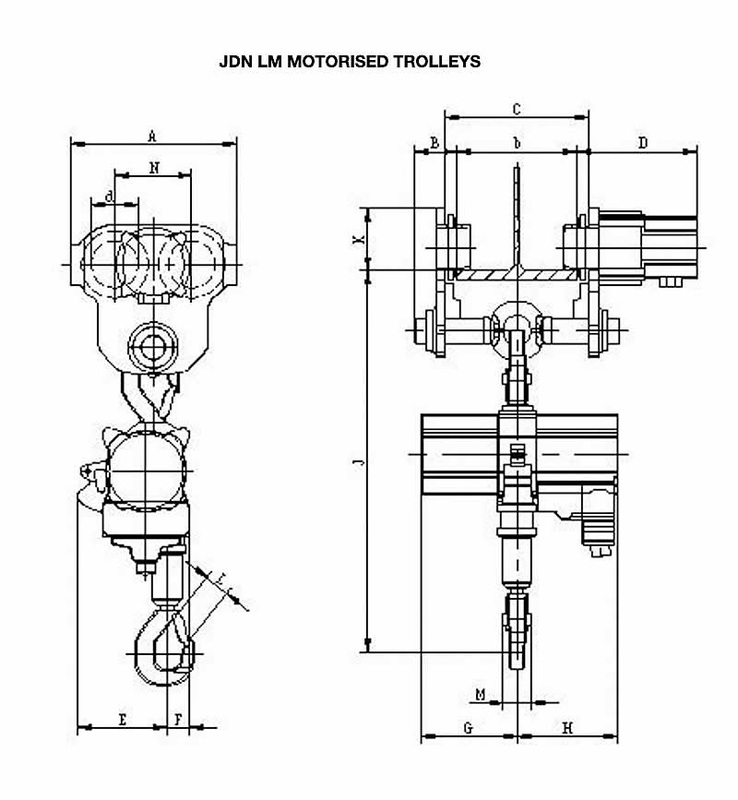

Dimensions: JDN LM MOTORISED TROLLEYS (in mm)
*Chain buckets increase the hoist headroom.
MODEL 0.25Ti 0.5Ti 1Ti 1.5Ti 2Ti 3Ti 3Ti/2 6Ti 10Ti 16Ti 20Ti
With trolley LM 2T LM 2T LM 2T LM 2T LM 2T LM 3.2T LM 3.2T LM 6.3T LM 10-16T LM 10-16T LM 20T
A 250 250 250 250 250 292 292 500 490 490 600
B max. 130 130 130 130 130 113 113 141 142 142 132
C b + 36 b + 36 b + 36 b + 36 b + 36 b + 60 b + 60 b + 70 b + 70 b + 70 b + 68
d 70 70 70 70 70 84 84 165 165 165 185
D 183 183 183 185 183 191 191 205 328 328 328
E 137 137 137 170 137 187 140 154 197 199 180
F 39 39 39 45 46 46 75 79 109 109 135
G 145 145 145 200 145 233 200 233 308 382 382
H 152 152 152 212 152 250 212 250 267 310 310
J* (mounted) - - - - - 635 613 763 929 982 1125
J* (suspended) 563 563 563 602 611 798 - 919 1176 1171 1475
K 95 95 95 95 95 107 107 188 188 188 218
L 28 28 28 26 28 30 28 40 42 55 75
M 42 42 42 40 42 42 42 51 66 82 86
N 116 116 116 116 116 136 136 236 236 236 274
