​Load Indicators

​Dynafor Load Indicators

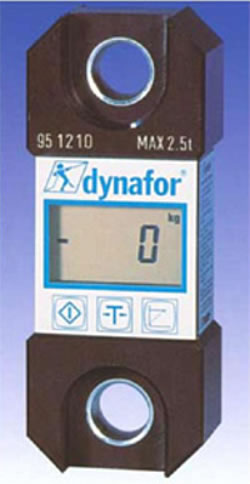

LLX Dynamometer

Tractel LLX Dynafor Dynamometers Compact and Lightweight
High strength aluminium alloy and up-to-date miniature electronics giving lightweight and compact units.
Designed to take a shackle each end providing solid anchor points.
  • Safety and Reliability
  • Strong with accurate digital display
  • Weatherproof and dustproof
  • Coefficient of safety:4. Features
  • LCD Display
  • Display in mass or force
  • Automatic zero when switched on
  • Tare over full range
  • Digital output for data processing
  • Peak hold: maximum effort held in memory
  • Low battery indicator
  • Overload indicator.
​

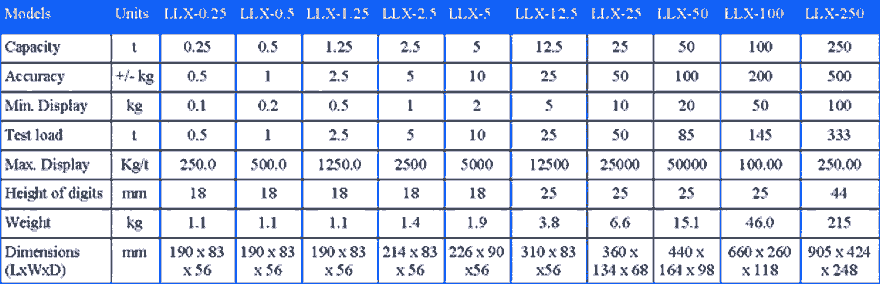

Technical Data - Accuracy: +/- 0.2% of normal capacity. - Battery life - 250 to 700 hours depending on model. - Weatherproofed to IP65. - Operating temperature: -10°C to + 50°C. - Temp. compensation: automatic zero adjustment when equipment free load is switched ON.

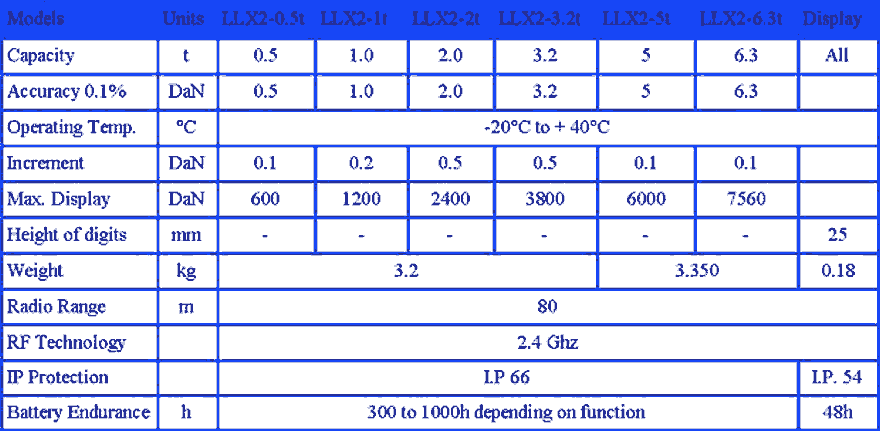

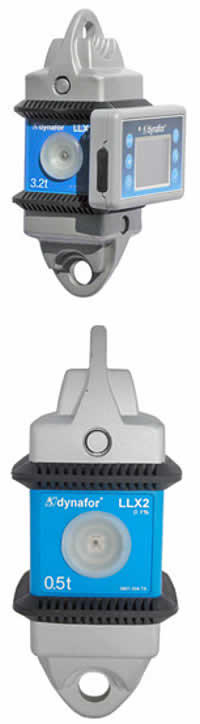

LLX2 Dynamometer
​
  • Dynafor Dynamometers Extended Range
  • Comes in six capacities: 0.5T, 1T, 2T, 3.2T, 5T and 6.3T.
  • Removable Display
  • The LLX2 display attaches securely to the sensor unit or can be held in your hand for remote operation.
  • A Range Of Fastening Accessories
    Tractel's patented system for shackle and chain compatability makes the Dynafor LLX2 directly compatible with traditional shackles and with accessories for all standard chains currently on the market.
  • Crossed Fastening Planes
    The two axes of the sensor are crossed, enabling movements of lifting accessories on both sides, thus avoiding stresses due to load movements and enhancing appliance precision (Coplanar version available on request).
  • Resistant To Shock And Weather
    The Dynafor LLX2 can be used indoors and outdoors, with excellent shock and moisture resistance,rated to IP66 protection. High Precision
  • The Dynafor LLX2 has an accuracy of 0.1%, the industry standard. A Wireless Link With 80 Metre Range
    With its 2.4GHz frequency band, the Dynafor LLX2 provides a large operating range (80 metres) and can be used simultaneously in an environment with no risk of interference where a number of different devices are operating. High Endurance
  • Sensor battery life: 300 to 1000 hours, depending on functions used, and 3000 hours while on standby.
    Display battery life: 48 hours while in use. Intuitive Commands
  • Use of and access to the various functions is fast and easy. Interchangeable Displays
    The Dynafor LLX2 uses a single model display for all models, ensuring high utilisation and flexibility.
  • Several Sensors And Displays can be Associated -
    Up to 4 sensors can be associated to up to 4 displays each. PC Link
  • The optional PC Connection Kit (PC to LLX2 via USB) allows advanced processing of measurement data.

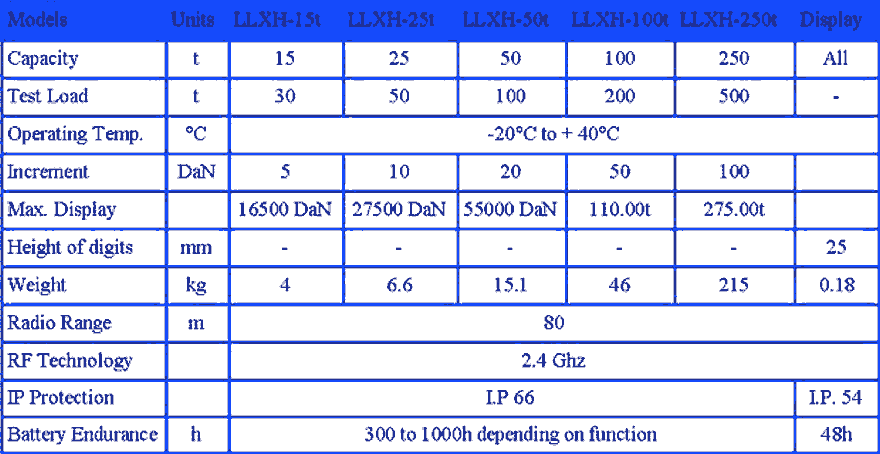

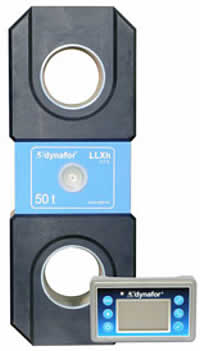

LLXH Dynamometer
​
  • The dynafor™ LLXh (h for hybrid) are precision appliances for measuring pulling force and indicating loads.
  • They combine the proven mechanical body of the LLX with the new electronic software from the LLX2.
  • They are precise within +/- 0,2 % and are available from 15T (150kN) to 250T (2,500kN).

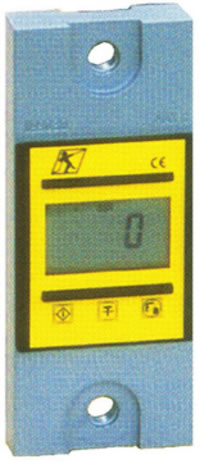

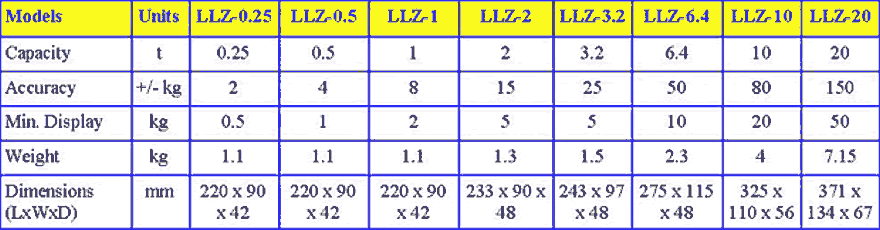

LLZ Dynamometer

The Dynafor LLZ dynamometers are a range of electronic dynamometers with digital readout for pulling and lifting applications.

Using strain gauge sensors, the LLZ are designed for use between shackles or brackets.
​
These units operate in all positions for force measurement and vertically for load checking and measurement.


​

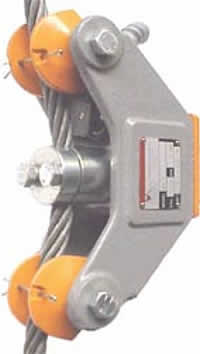

Liftco Load Limiters

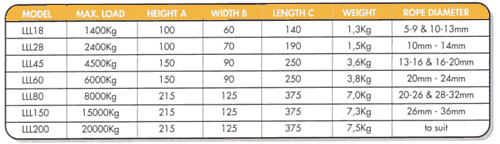

Standard Load Limiter (All Specifications Apply)

Applications
  • For use on multi-fall cranes and hoists.
  • 2 Stage Switching Limiter (From Specifications LLL45)Applications
  • These limiters have two switches, one for use when a warning is required prior to overload cut-out activation.
  • Slack Rope Limiter (From Specifications LLL45)
  • For use on wire rope where a pre-set minimum tension is required.
  • Slack Rope Limiter/Overload Load Limiter (From Specifications LLL45) Applications
  • For use on hoisting systems where minimum and maximum loading must be monitored e.g. Ship Loading Boom.

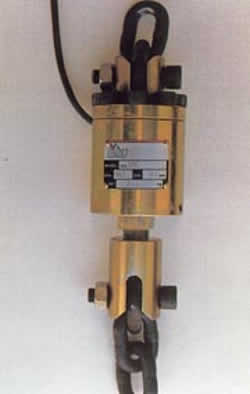

Liftco Load Limiter Chain

Chain Hoist Limiters

Applications
For most chain hoists. Easy to install with no special tools needed. Minimal maintenance required.

Model    Max Chain Load   Width   Length   Weight    Chain Diameter
LLL12C   1200Kg                  50mm   170mm    1.3Kg       Up to 7.1 mm
LLL17C   1700Kg                  70mm   210mm    3Kg          Up to 10mm
LLL28C   2800Kg                  70mm   210mm    3Kg          Up to 11.2mm
