​Grade 100 Alloy Chain Fittings

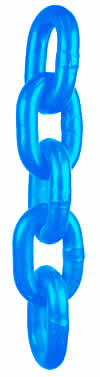

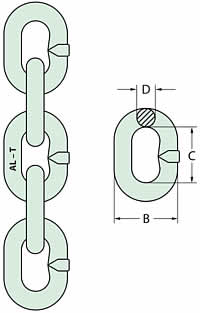

Grade 100 Alloy Chain

​Grade 100 chain is made in Germany, generally used for Chain Slings with 25% higher lifting capacity than G80. Manufactured from hardened and tempered alloy steels and has a high resistance to impact and wear to meet critical requirements of AS 2321 “Short Link Chain for lifting purposes”. Chain links are formed from German Wafos link machine technology to produce its high quality of lightweight strength, durability and safety of lifting chain applications.
  • Sizes available from 8mm to 22mm.
  • Marked with chain grade and traceability mark.
  • Made from G100 alloy steel with safety factor of 4 to 1.
  • Conforms to AS 2321 but with 25% higher work load limit.
  • Batch tested, Test Certificates available upon request.
CODE SIZE WLL Wt. DIMENSIONS
kg B C D
mm tonne per m mm mm mm
171008 8 2.5 1.4 28 24 8
171010 10 4 2.2 35 30 10
171013 13 6.7 3.8 46 39 13
171016 16 10 5.7 56 48 16
171020 20 16 9 70 60 20
171022 22 19 10.9 78 66 22
Grade 100 Welded Master Link (with flat)
​
SD Type G100 Head-Rings are designed to cater for single leg and double leg Chain Slings or Wire Rope Sling applications.
  • Marked with single and double chain sizes, designation, grade with manufacture quality mark and Austlift branded
  • Manufactured from G100 alloy steel with safety factor of 4 to 1
  • Manufactured and tested in accordance to AS 3776 but with 25% higher work load limit.
  • Test Certificates available upon request.
CODE CHAIN SIZE WLL Wt. DIMENSIONS
1 leg 2 leg A B D
mm mm tonne kg mm mm mm
170008 8 6 2.5 0.4 120 70 14
170010 10 8 4.0 0.7 140 80 17
170013 13 10 7.5 1.5 160 95 22
170016 16 13 10 2.2 190 110 25
170020 20 16 17 5.1 240 140 34
170022 22 20 25 7.2 250 150 38

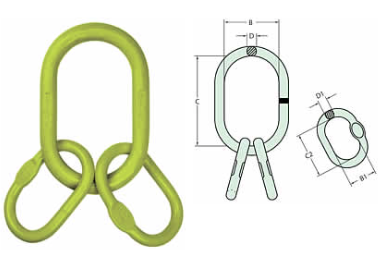

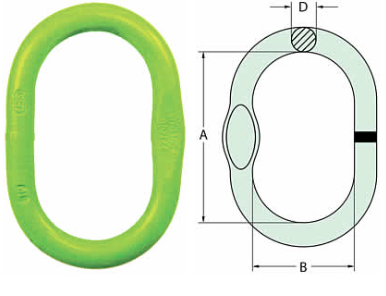

Grade 100 Master Link Multi (Type MD)
​
MD Type G100 Multi Head Rings are designed with a large ring and two intermediate links to cater for two, three and four leg Chain Sling or Wire Rope Sling applications.
  • Marked with chain size, designation, grade with manufacture quality mark and Austlift branded
  • Made from G100 alloy steel with safety factor of 4 to 1
  • Test Certificates available upon request.
  • Manufactured and tested in accordance to AS 3776 but with 25% higher work load limit.
CODE SIZE WLL Wt. DIMENSIONS
B B1 C C2 D D1
mm tonne kg mm mm mm mm mm mm
170106 6 3.5 1.8 90 19 150 120 19 14
170108 8 5 3.0 95 22 160 140 22 17
170110 10 8 6.5 120 30 200 160 30 22
170113 13 14 15 150 40 250 200 40 30
170116 16 21 23 200 50 300 200 50 32

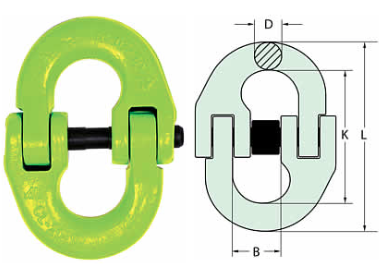

Grade 100 Connecting Links
​
CL Type G100 Connecting Links are commonly used to connect head rings, chain, Hooks and other lifting components for Chain Slings. Sizes available from 6mm to 22mm
  • Marked with chain size, grade and Austlift branded.
  • Made from G100 alloy steel with a safety factor of 4 to 1.
  • Manufactured and tested in accordance to AS 3776 but with 25% higher work load limit.
  • Batch tested, Test Certificates available upon request.
CODE CHAIN SIZE WLL Wt. DIMENSIONS
kg B K D L
mm tonne per m mm mm mm mm
170206 6 1.4 0.1 14 44.5 7.6 60
170208 8 2.5 0.22 18.5 61.5 10 84.5
170210 10 4 0.45 23 72 12.6 97.2
170213 13 6.7 1.15 27.5 89 16.8 127
170216 16 10 1.75 33.5 103 21 145
170220 20 15.6 2.7 42 116 24.5 175
170222 22 19 4.02 48 135 27 193

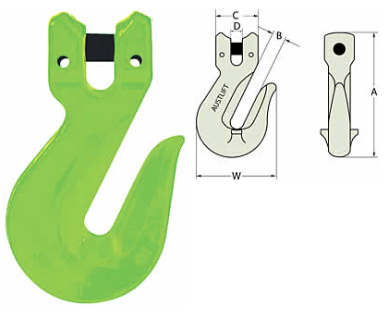

Grade 100 Grab Hook (Clevis Type)
​
GC Type G100 Clevis Grab Hooks provide the fl exibility to shorten chain leg on a sling may also be used for back-hooking. Grab Hooks come with supporting lugs to allow no reduction of the working load limit. The clevis is designed for ease of connection of chain.
  • Marked with chain size, designation, grade with manufacture quality mark and Austlift branded.
  • Made from G100 alloy steel with safety factor of 4 to 1
  • Manufactured and tested in accordance to AS 3776 but with 25% higher work load limit.
  • Test Certificates available upon request.
CODE CHAIN SIZE WLL Wt. DIMENSIONS
A B C D W
mm tonne kg mm mm mm mm mm
170306 6 1.4 0.22 75 8 32 7.5 43.5
170308 8 2.5 0.34 91.5 10.8 36 9.5 53
170310 10 4 0.82 126 13.5 46 12 72
170313 13 6.7 1.75 136.5 16.5 59 15 96
170316 16 10 2.88 183.5 19.2 70 17.5 112.5
170320 20 16 4.84 224 24 85 24 143
170322 22 19 8.3 262 27 100 27 160.5

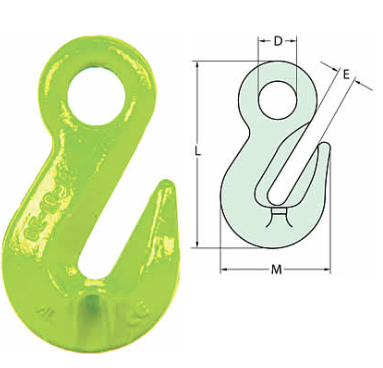

Grade 100 Eye Shortening Grab Hook (Eye Type)
​
GE Type G100 Eye Grab Hook provide the fl exibility to shorten chain leg on a sling may also be used for back-hooking. Grab Hooks come with supporting lugs to allow no reduction of the working load limit. The eye is designed for ease of connection of coup-link.
  • Marked with chain size, designation, grade with manufacture quality mark and Austlift branded
  • Made from G100 alloy steel with safety factor of 4 to 1.
  • Manufactured and tested in accordance to AS 3776 but with 25% higher work load limit.
  • Test Certificates available upon request.
CODE CHAIN SIZE WLL Wt. DIMENSIONS
D E M L
mm tonne kg mm mm mm mm
170406 6 1.4 0.2 14.5 8 43.5 70
170408 8 2.5 0.28 18 10.8 53 91
170410 10 4 0.72 22.5 13.5 42 126
170413 13 6.7 1.6 28 16.5 96 162
170416 16 10 2.45 36 19.2 112.5 182
170420 20 16 4.72 43.5 24 143 225
170422 22 19 8.2 48.5 27 160.5 259

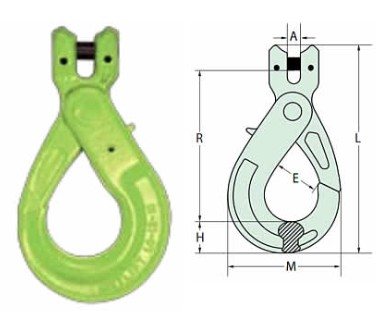

Grade 100 Self Locking Hook (Clevis Type)
​
LC Type G100 Clevis Self-Locking Hook allows the hook to be easily closed with one hand, it will close itself when the load is engaged. The Hook will not open until the trigger at the back is pressed. Clevis style allows easy connection to the Chain.
  • Marked with chain size, designation, grade with manufacture quality mark and Austlift branded.
  • Manufactured from G100 alloy steel with a safety factor of 4 to 1.
  • Manufactured and tested in accordance to AS 3776 but with 25% higher work load limit.
  • Test Certificates available upon request.
  • Spare Trigger Kits and Load Pins are available.
CODE CHAIN SIZE WLL Wt. DIMENSIONS
A E R H L M
mm tonne kg mm mm mm mm mm mm
170506 6 1.4 0.5 7.5 28 96 20 131 70
170508 8 2.5 0.9 9.5 35.5 123 26 166 90
170510 10 4 1.6 12 45 144 30 196.5 109
170513 13 6.7 2.9 15 53.5 182 40.5 251 138.5
170520 20 16 8.6 25 76.5 235 62 337.5 192.5
170522 22 19 12.1 25.5 80 276.5 66 391 205
170516 16 10 5.8 17.5 62 217 50.5 303 170.5

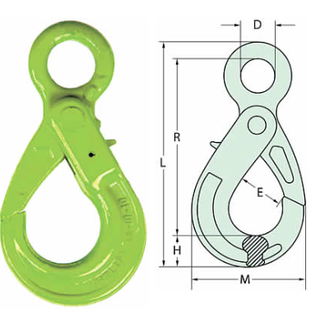

Grade 100 Self Locking Hook (Eye Type)
​
LE Type G100 Eye Self-Locking Hook allows the hook to be easily closed with one hand, it will close itself when the load is engaged. The Hook will not open until the trigger at the back is pressed. Eye style allows easy connection to Coup Links, Shackles and Wire.
  • Marked with chain size, designation, grade with manufacture quality mark and Austlift branded.
  • Manufactured from G100 alloy steel with a safety factor of 4 to 1.
  • Manufactured and tested in accordance to AS 3776 but with 25% higher work load limit.
  • Test Certificates available upon request.
CODE CHAIN SIZE WLL Wt. DIMENSIONS
D E R H L M
mm tonne kg mm mm mm mm mm mm
170606 6 1.4 0.5 21 28 110 20 141 70
170608 8 2.5 0.9 27 35.5 137 26 175 90
170610 10 4 1.5 34.5 45 169 30 212.5 108
170613 13 6.7 2.7 40 53.5 209 40.5 270 138.5
170616 16 10 5.7 50 62 254 50.5 331 170.5
170620 20 16 7.9 60 76.5 277 62 369 192.5
170622 22 19 11.2 70 80 319.5 66 417 205

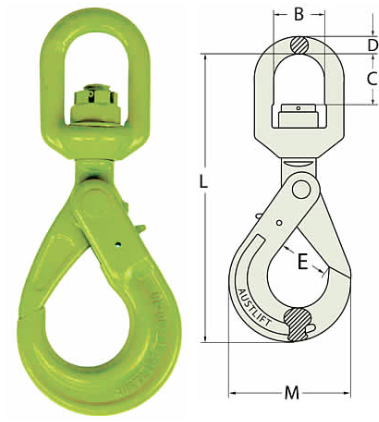

Grade 100 Self Locking Hook Swivel Type
​
LS Type G100 Swivel Self-locking Hooks have a plain bearing swivel to allow the hook to swivel thus reducing the twist of a sling.
  • Marked with chain size, designation, grade with manufacture quality mark and Austlift branded
  • Manufactured from G100 alloy steel with a safety factor of 4 to 1.
  • Manufactured and tested in accordance to AS 3776 but with 25% higher work load limit.
  • Test Certificates available upon request.
  • Spare Trigger Kits are available.
CODE CHAIN SIZE WLL Wt. DIMENSIONS
B C D E H M L
mm tonne kg mm mm mm mm mm mm mm
170706 6 1.4 0.6 32.5 23 11.5 28 20 70 180
170708 8 2.5 1.1 36 28 13 35.5 26 90 229
170710 10 4 2 42 35 15.5 45 30 109 269
170713 13 6.7 4 50 40 17 53.5 40.5 138.5 330
170716 16 10 6.8 61 56 21.5 62 50.5 170.5 413
170720 20 16 12.5 72 62 26 76.5 62 192.5 463
170722 22 19 17.1 97 94 33 80 66 205 5

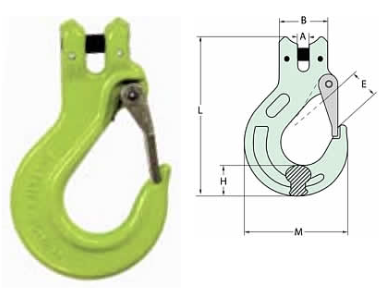

Grade 100 Clevis Sling Hook (with Latch)
​
Austlift SC Type G100 Clevis Sling Hook are a general purpose hook suitable for most slinging applications and comes with a cast latch for added safety. Clevis allows easy connection to chain.
  • Marked with chain size, designation, grade with manufacture quality mark and Austlift branded
  • Manufactured from G100 alloy steel with a safety factor of 4 to 1.
  • Manufactured and tested in accordance to AS 3776 but with 25% higher work load limit.
  • Test Certificates available upon request.
CODE CHAIN SIZE WLL Wt. DIMENSIONS
A B E H M L
mm tonne kg mm mm mm mm mm mm
170806 6 1.4 0.33 7.5 32 18.5 21 68.5 109
170808 8 2.5 0.7 9.5 37 25 27.5 88 134
170810 10 4 1.3 12 48 28 33.5 1.5.5 161.5
170813 13 6.7 2.3 15 59 38 42 134 203
170816 16 10 3.6 17.5 70 44 50 160.5 248
170820 20 16 7.3 25 85 52 56 190.5 297
170822 22 19 12.1 27 100 66 62 214.5 326

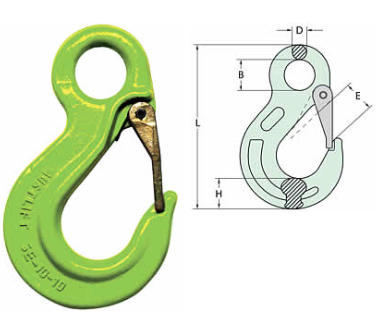

Grade 100 Eye Sling Hook with Catch
​
SE Type G100 Eye Sling Hooks are a general purpose hook suitable for most slinging applications and come with a cast latch for added safety. Eye allows easy connection to coup links and can be attached to lifting apparatus.
  • Marked with chain size, designation, grade with manufacture quality mark and Austlift branded.
  • Manufactured from G100 alloy steel with a safety factor of 4 to 1.
  • Manufactured and tested in accordance to AS 3776 but with 25% higher work load limit.
  • Test Certificates available upon request.
CODE CHAIN SIZE WLL Wt. DIMENSIONS
B D E H L
mm tonne kg mm mm mm mm mm
170906 6 1.4 0.32 20.5 10 18.5 21 111
170908 8 2.5 0.6 25 11 25 27.5 137.5
170910 10 4 1.2 34 16 28 33 171.5
170913 13 6.7 2.2 43 19 38 43.5 219
170916 16 10 3.5 50 24.5 44 50 260
170920 20 16 7.15 55 27 52 56 298
