Genie Lift |
| ||

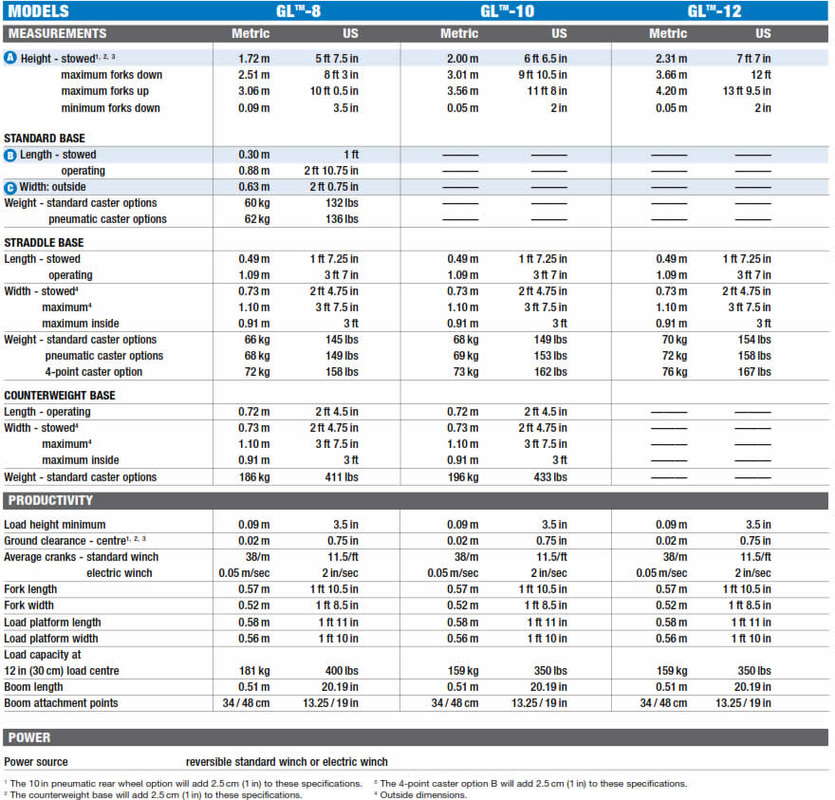

Measurements
GL™-8
GL™-10
GL™-12
Productivity
Power
Options
Caster option kit required for use with Straddle bases
GL™-8
- 3.06 m (10 ft 0.5 in) maximum lift height
- Up to 181 kg (400 lbs) load capacity
GL™-10
- 3.56 m (11 ft 8 in) maximum lift height
- Up to 159 kg (350 lbs) load capacity
GL™-12
- 4.20 m (13 ft 9.5 in) maximum lift height
- Up to 159 kg (350 lbs) load capacity
Productivity
- Standard forks
- Portable and compact design
- Lightweight durable aluminum construction
- Single door access
- Durable standard steel forks
- 20 cm (8 in) non-marking rear wheels and 5 cm (2 in) dual wheel front swivel casters (standard and straddle base only)
- 12 cm (5 in) rear swivel casters with side brakes and 10 cm (4 in) fixed front wheels (counterweight base only)
- Loads easily into a ute for transporting
- Hold-down mechanism secures carriage during transport
Power
- Standard winch
- Reversible winch handle for easy storage
- Counterweight base (GL™-8, -10)
- Load platform Boom Aluminum ladder (standard and straddle base only)
- Pneumatic rear tyres (standard and straddle base only)
- Foot-release brake (standard and straddle base only)
- Caster options Straddle base
Options
Caster option kit required for use with Straddle bases
