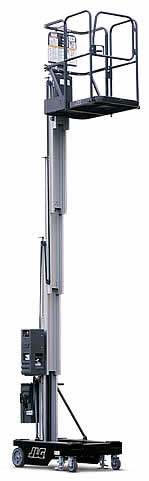

​JLG Push Around Stock Pickers 12SP / 15SP

Lift Pod 12SP

​Key Specs
  • Machine Width: 0.86 m / 2 ft 10 in.
  • Platform Height: 3.58 m / 11 ft 9 in.
Key Features
  • Flexible platform that folds up and down for efficient retrieval of materials
  • Zero turning radius for superior maneuverability
  • Long battery duty cycles for less downtime on the job
Dimensional Data
Ground Entry Height 0.44 m / 1 ft 6 in.
Machine Height 1.98 m / 6 ft 6 in.
Machine Length 1.84 m / 6 ft
Machine Width 0.86 m / 2 ft 10 in.
Platform Dimension A 1.22 m / 4 ft
Platform Dimension B 0.71 m / 2 ft 4 in.
Platform Height 3.58 m / 11 ft 9 in.
Reach Specifications
Platform Height 3.58 m / 11 ft 9 in.
Working Height 5.49 m / 18 ft
Performance
Maximum Lift Height 3.60 m / 12 ft
Outriggers or Stabilizers No
Platform Capacity 226.80 kg / 500 lb
Lift Pod 15SP

​Key Specs
  • Machine Width: 0.86 m / 2 ft 10 in.
  • Platform Height: 4.62 m / 15 ft 2 in.
Key Features
  • Flexible platform that folds up and down for efficient retrieval of materials
  • Zero turning radius for superior maneuverability
  • Long battery duty cycles for less downtime on the job
Dimensional Data
Ground Entry Height 0.44 m / 1 ft 6 in.
Machine Height 1.98 m / 6 ft 6 in.
Machine Length 1.92 m / 6 ft 4 in.
Machine Width 0.86 m / 2 ft 10 in.
Platform Dimension A 1.22 m / 4 ft
Platform Dimension B 0.71 m / 2 ft 4 in.
Platform Height 4.62 m / 15 ft 2 in.
Reach Specifications
Platform Height 4.62 m / 15 ft 2 in.
Working Height 6.4 m / 21 ft
