​Tilt Tailgates

Load capacities: 500kg to 3000kg

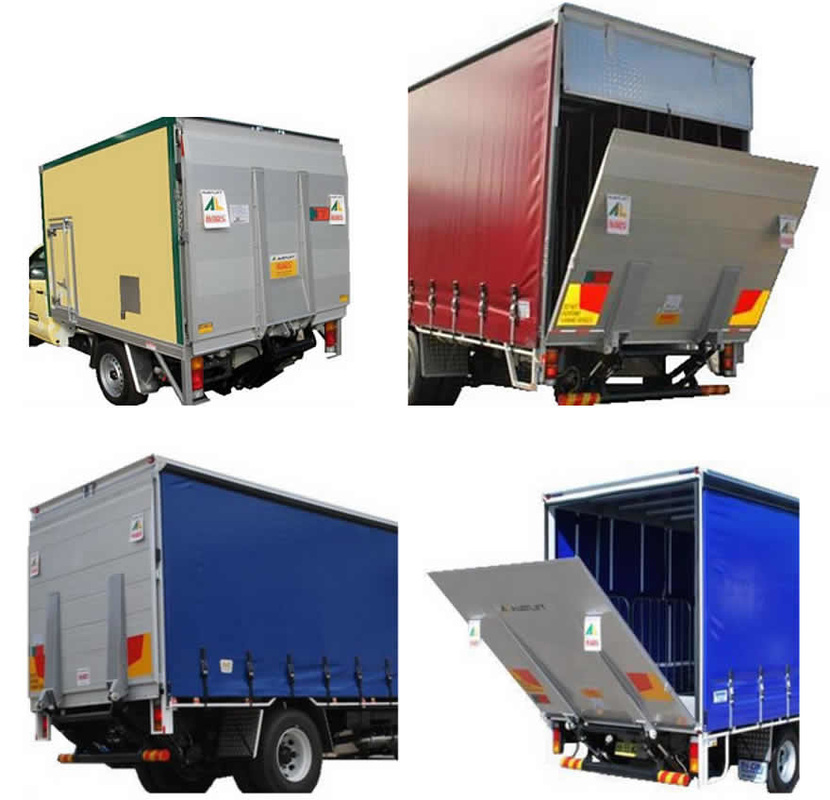

​Austlift Tilt series tailgates offer customers the ultimate in lifting capacity. From the light weight 500kg for the smaller flat top or pan-tech to the heavy duty 3000kg tilt for all your larger truck and trailers.

We can install these tilt tailgates for you.
Standard features
​
  • Level ride platform with Automatic tilt to ground
  • Hose burst protection
  • Mesh, steel or aluminium platform construction
  • Trolley stopers optional/standard.
  • Self lubricating bushes
  • Three button control pendant
​

​
  • Lockable fix control station
  • Battery Isolator switch
  • Pre set pressure compensating flow lowing control valve
  • Wide frame lift mechanism improves load stability
  • Under run bar
  • Available in 12 or 24 Volt
Specifications
Model Loading Capacity Steel Platform Chequer Plate Mesh Platform Aluminium Platform Platform W/L Load Centre Trolley Stops Floor Height Min/Max Clearance min
Cantilever kg kg Kg kg
ALTT500 500 280 270 1800/1600 600 Opt 750/1100 700
ALTT1000 1000 425 390   2000/1650 2470/2000 600 Opt 900/1400 900
ALTT2000 2000 650 600   2470 (w) 2300, 2400, 2500, 2600, 1000 Std. 900/1400 900
ALTT3000 3000 690 630   2470 (w) 2300, 2400, 2500, 2600, 1000 Std. 900/1400 900
