​Black Wire Rope

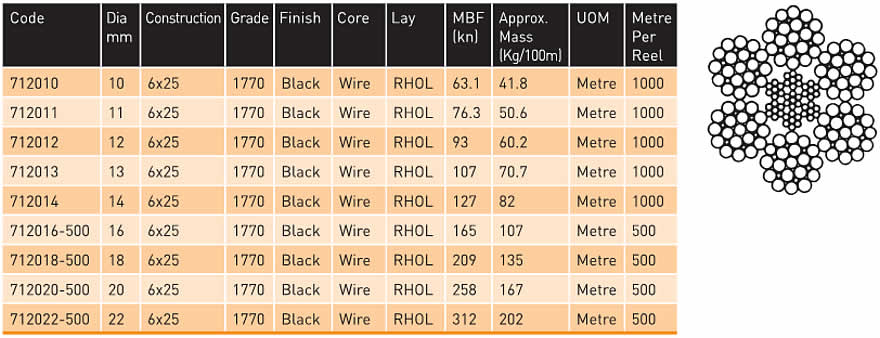

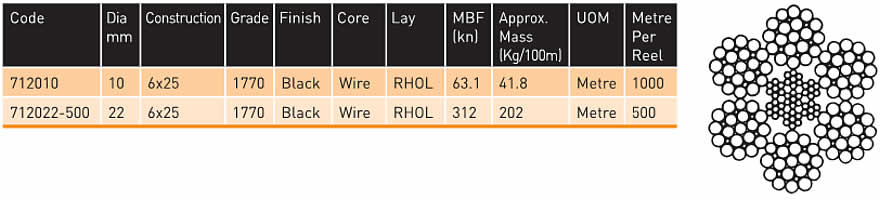

6x25 IWRC B1770 RHOL Black Wire Rope

6x25 IWRC G2070 RHOL Black Wire Rope

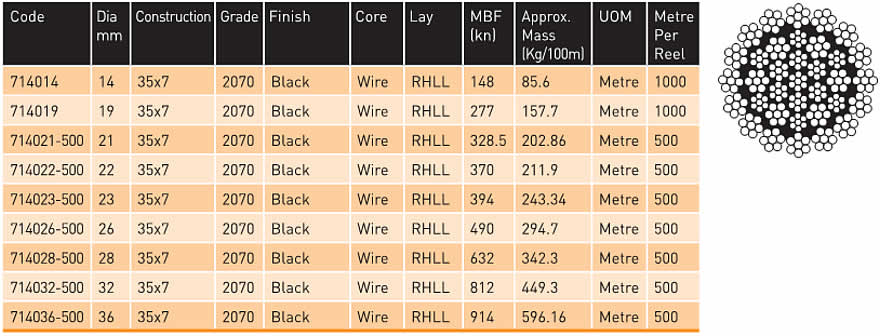

35x7 B2070 Non-Rotating Black Wire Rope
6 x 19 S (9/9/1) + IWRC

Austlift 6x19S Steel Core supplied Wire Ropes have a flexible characteristic and suitable for, logging wire, aerial, winch cable, or pulling use wherever flexible rope is required for the application.
​
  • Sizes available from 12mm to 28mm with standard grade of 1770 and 2070.
  • Black or Galvanized finish in stock.
  • Supplied reel lengths available are 500 metres and 1,000 metres.
  • Conforms to AS3569, Test Certificate available with each reel batch
  Dia MBS Mass
Black mm G1770 kN kg / 100 mtrs
822120 12 90.8 60.2
822130** 13 106 70.65
822185 18 204 129.5
822205 20 252 160
822225 22 305 193.5
822265 26 426 270.5
822285 28 494 313.5
6 x36SW + IWRC

Austlift 6x36 Steel Core Wire Ropes have a flexible characteristic and suitable for engineering, slings, derrick cranes or general purpose uses wherever flexible rope is required for the application.
​
  • Sizes available from 14mm to 32mm with standard grade of 1770 and 2070 available. Black finish
  • Supplied reel lengths available are 500 metres and 1,000 metres.
  • Conforms to AS3569,
  • Test Certificate available with each reel batch.
  Dia. MBS Mass
Code mm 1770 Mpa kN kg / 100 mtrs
837145 14 124 84.3
837165 16 161 110
837185 18 204 138
837205 20 252 167
837225 22 305 202
837245 24 363 240.5
837265 26 426 282.2
837285 (837286 LHOL) 28 494 327.3
35Wx7 WSC Wire Rope

Austlift 35x7 non-rotating Wire Ropes have a Non-spin characteristic suitable for lifting rope on cranes.
​
  • Sizes available from 12mm to 24mm with standard grade of 2070
  • Black and Galvanised finish
  • Supplied reel lengths available are 500 metres and 1,000 metres
  • Conforms to AS3569
  • Test Certificate available with each reel batch.
Code Dia MBS Mass
500 mtrs mm 2070kN kg / 100 mtrs
888125 12 93.1 56.2
888135 13 109.2 65.9
888145 14 129.6 78.7
888165 16 169.2 102.8
888185 18 240 129.7
888195 19 239.3 144.9
888205 20 265.2 160.6
888225 22 320.4 194.5
888245 24 381.6 231.6
18 x 7 FC Black Wire Rope

Austlift 18x7 non-rotating Wire Ropes have a non-spin characteristic suitable for lifting rope on cranes.
​
  • Sizes available from 6mm to 19mm with standard grade of 2070.
  • Black and Galvanised finish.
  • Supplied reel lengths available are 500 metres and 1,000 metres.
  • Conforms to AS3569, Test Certificate available with each reel batch.
Code Dia MBS Mass
500 mtrs mm 2070kN kg / 100 mtrs
887065 6 23.7 13.8
887085 8 42.1 24.5
887095 9 53.4 31
887105 10 66.1 38.3
887115 11 79.8 46.3
887125 12 95 55.1
887135 13 111 64.7
887145 14 130 75
887165 16 168 98
