​Tirfor Winches

bighaul-flyer.pdf
File Size: 323 kb
File Type: pdf
Download File

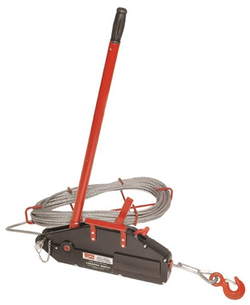

Big Haul Tirfor Winch
  • Lightweight, safe and easy to operate.
  • Compact, high strength aluminium alloy housing with smooth contour design, a large flat base surface for increased stability in horizontal and vertical working positions.
  • An overload protection system is built-in with a shearing pin in the forward lever which will shear when approximately 25% overloaded. The broken pins can be replaced without removing the load. Spare pins are located in the operating lever for RVBH08 and in the handle for RVBH16 and RVBH32.
  • Forward and reverse lever placed in tandem, providing a slim compact design for storage and ensuring maximum power transfer.
  • The rope clamp system is easily disengaged with a lever, allowing smooth installation of the wire rope.
  • The Big Haul Creeper Winch comes complete with operating lever and 20m of wire rope mounted on a reel for all models. The wire rope is fitted with a safety latch hook at one end and is tapered at the other end for easy access into the unit.
  • The Big Haul Creeper Winch has a parallel clamping system, which has a large surface contact area, providing an evenly distributed grip at a lower force that results in less rope wear. The system offers a longer rope advance and requires less handle pulling effort, thus increasing operator efficiency.
  • All models are equipped with an anchor bolt that offers numerous connection possibilities with load hooks, wire rope and chain slings.
  • All Big Haul Creeper Winches are tested and have individual serial numbers for easy traceability to a test certificate.
  • Big Haul Creeper Winches are easy to maintain, service and repair.
  • Complies to AS1418.2
Product Code 518508 518516 518532
Rated Lifting Capacity 800kg 1600kg 3200kg
Pulling Capacity 1250kg 2500kg 5000kg
Rope advance per full stroke cycle 60mm 60mm 40mm
Effort on handle at rated lifting capacity; Forward Operation 284kn 412kn 441kn
Diameter of wire rope 8.3mm 11mm 16mm
Standard wire rope length 20mt 20mt 20mt
Factor of safety of wire rope 5 5 5
Nett weight of wire rope and reel 7.5kg 12.0kg 23.5kg
Nett weight without wire rope 6kg 13kg 22kg

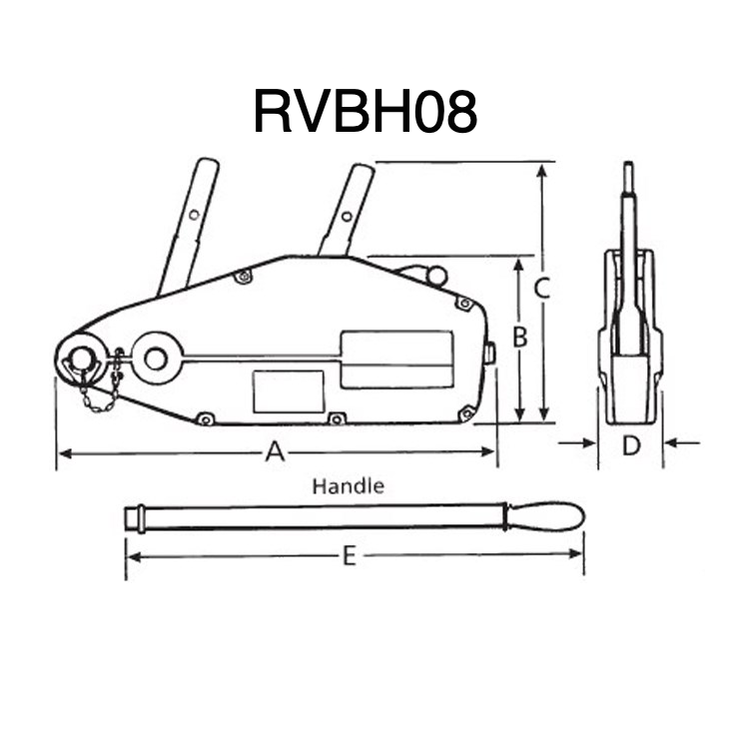

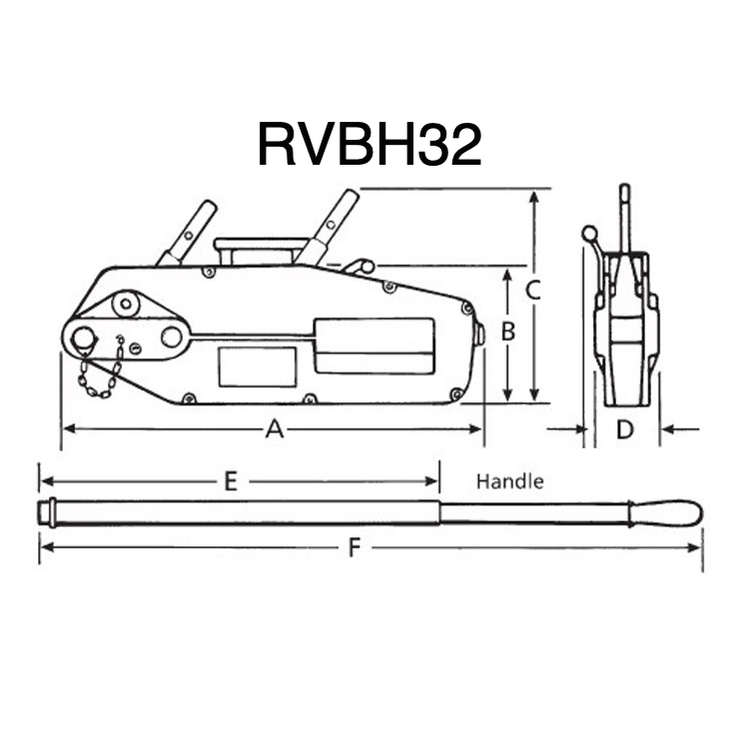

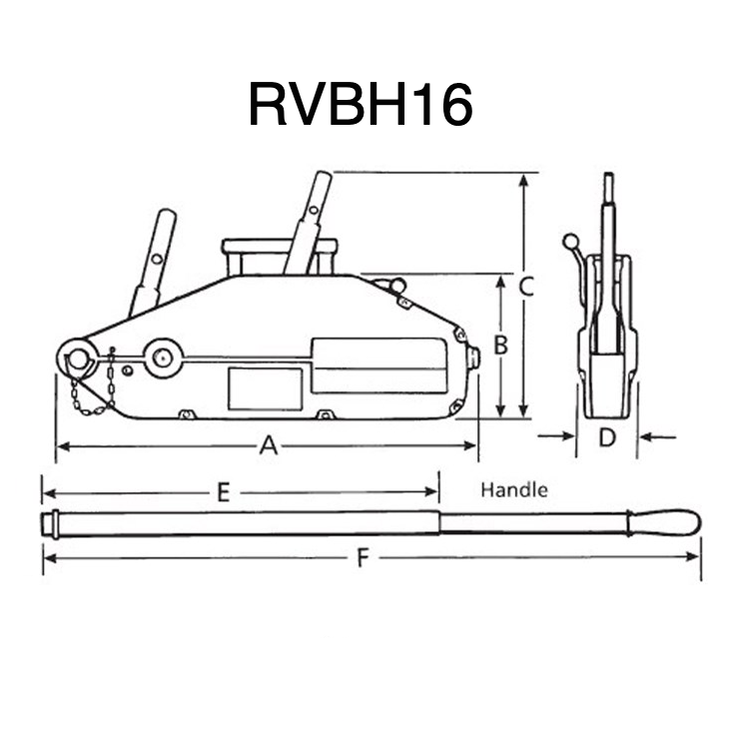

Code Model No. A mm B mm C mm D mm E mm F mm
518508  RVBH08  430  165  230  60  800  N/A
518516  RVBH16  540  190  300  75  790  1200
518532  RVBH32  660  220  330  110  790  1200
Wire Rope Puller
Wire Rope Puller
File Size: 365 kb
File Type: pdf
Download File
PRODUCT FEATURES
  • Compact and lightweight design which makes this product suitable for use in confined or limited space.
  • Easy to operate and anchor onto a variety of structures; making it suitable for most applications.
  • Operates in any position; horizontal, vertical and angled.
  • All steel construction (including rope) and contains no aluminum which makes this product suitable for many industries including underground mining applications.
  • Ideal for 4WD and off road applications.

​

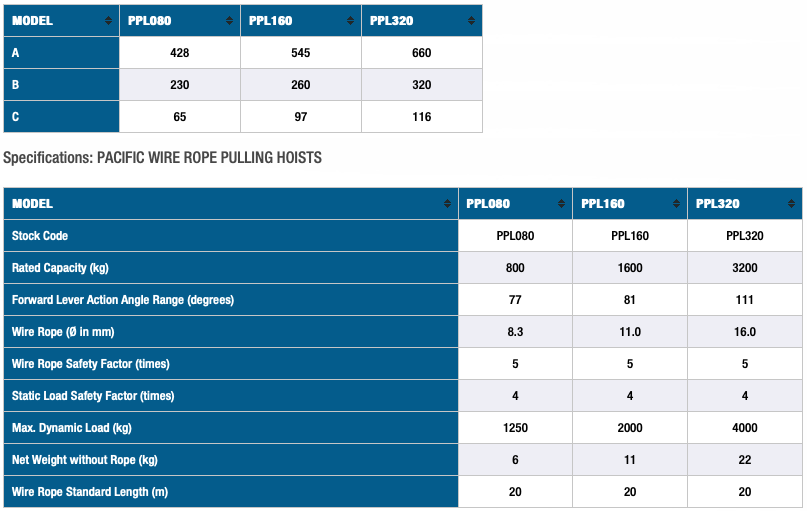

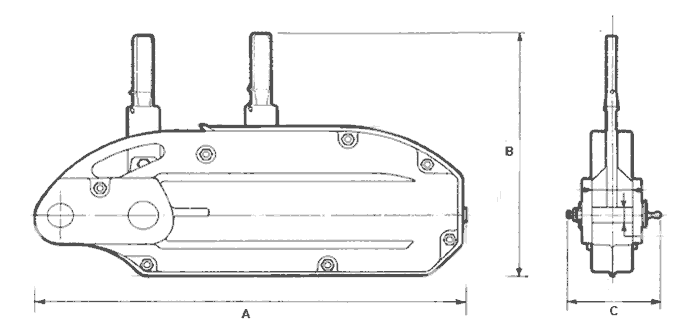

Specifications: PACIFIC WIRE ROPE PULLING HOISTS ​
