Push Trolleys
|
| ||
|

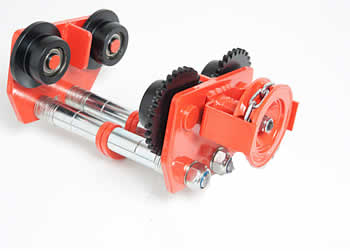

Push Trolley Twin Pin
|
| ||
| MODEL | PPT105 | PPT110 | PPT120 | PPT130 | PPT150 | PPT160 |
|---|---|---|---|---|---|---|
| Stock Code | PPT105 | PPT110 | PPT120 | PPT130 | PPT150 | PPT160 |
| Rated Capacity (kg) | 500 | 1000 | 2000 | 3000 | 5000 | 10000 |
| Beam width (mm) | 62 - 172 | 76 - 204 | 90 - 216 | 126 - 210 | 126 - 210 | 125 – 310 |
| Min. curve radius (m) | 0.8 | 1.0 | 1.5 | 1.7 | 1.7 | 2.7 |
| Net Weight (kg) | 6.06 | 10.88 | 19.12 | 34.96 | 36.30 | 118.0 |
| Gross Weight (kg) | 6.4 | 11.32 | 19.88 | 36.22 | 36.70 | 133.0 |
