Hardware ​Fittings / Stainless Steel

Stainless Steel Forged Bow Shackles:

Breaking load	Dia of bow	Dia of Pin	Inside width	Inside length	Width of bow	Weight per 100pcs
in kgs	mm	mm	mm	mm	mm	in kgs
750 1200 1750	4 5 6	4 5 6	8 10 12	16 20 24	14 17 21	1.0 1.8 2.8
3000 5800 7000	8 10 12	8 10 12	16 20 24	32 40 48	28 34 42	6.4 15 22.3
13250 20250 25000	16 19 22	16 19 22	32 38 44	64 76 88	56 66 77	55 97 146
32000 40000 50000	25 28 32	25 28 32	50 56 64	100 112 128	87 98 112	211 285 326

---

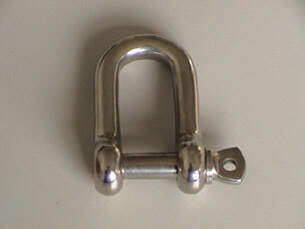

Stainless Steel Forged Dee Shackles:

Breaking load	Dia of bow	Dia of Pin	Inside width	Inside length	Weight per 100pcs
in kgs	mm	mm	mm	mm	in kgs
750 1200 1750	4 5 6	4 5 6	8 10 12	16 20 24	1.1 1.6 2.4
3000 5800 7000	8 10 12	8 10 12	16 20 24	32 40 48	6.6 13 20
13250 20250 26000	16 19 22	16 19 22	32 38 44	64 76 88	48 84 127
32000 40000 50000	25 28 32	25 28 32	50 56 64	100 112 128	184 250 372

---

U.S. TYPE LOAD RATED SHACKLES - Screw pin anchor shackles
meet Federal Specification RR-C-271a Type iv class 1.

ANCHOR SHACKLES-ROUND PIN-SCREW PIN Quenched & Tempered
Safe Working Load Metric Tons	DIMENSIONS in mm									Weight Kgs Each
	Size		Inside Length mm	Inside Width     mm		Diameter        mm		Tolerance Plus or Minus
	in	mm
				At Pin	At Bow	Pin	Outside of Eye	Length	Width
1/3 1/2 3/4 1 1-1/2 2 3-1/4 4-3/4 6-1/2 8-1/2 9-1/2 12 13-1/2 17 25 35	3/16 1/4 5/16 3/8 7/16 1/2 5/8 3/4 7/8 1 1-1/8 1-1/4 1-3/8 1-1/2 1-3/4 2	4.8 6.4 8 9.5 11.1 12.7 15.9 19 22.2 25.4 28.6 31.8 34.9 38.1 44.4 50.8	22 28 31 36 42 47 60 71 84 95 108 119 133 146 177 196	9 12 13 16 18 20 27 31 36 43 46 51 57 60 73 82	17 20 21 26 29 33 43 51 58 68 74 82 92 98 127 146	6 8 9 11 12 16 19 22 25 28 31 35 38 41 51 57	14 17 20 24 27 30 39 47 54 60 66 76 84 92 109 127	1.5 1.5 1.5 3 3 3 3 6 6 6 6 6 6 6 6 6	1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 3 3 3 3	0.02 0.05 0.08 0.14 0.22 0.34 0.65 1 1.6 2.4 3.2 4.4 5.8 8 13 19

---

U.S. TYPE SCREW PIN CHAIN SHACKLES - Screw pin chain shackles meet
Federal Specification RR-C-271a Type iv class 2.

CHAIN SHACKLES-ROUND PIN-SCREW PIN Quenched & Tempered
Safe Working Load Metric Tons	DIMENSIONS in mm								Weight Kgs Each
	Size		Inside Length mm	Inside Width mm	Diameter         mm		Tolerance      Plus or Minus
	in	mm
					Pin	Outside of Eye	Length	Width
1/2 3/4 1 1-1/2 2 3-1/4 4-3/4 6-1/2 8-1/2 9-1/2 12 13-1/2 17 25 35 50	1/4 5/16 3/8 7/16 1/2 5/8 3/4 7/8 1 1-1/8 1-1/4 1-3/8 1-1/2 1-3/4 2 2-1/2	6.4 8 9.5 11.1 12.7 15.9 19 22.2 25.4 28.6 31.8 34.9 38.1 44.4 50.8 63.5	22 26 31 36 41 51 60 71 81 90 100 112 124 146 171 203	12 13 16 18 20 27 31 36 43 46 51 57 60 73 82 105	8 9 11 12 16 19 22 25 28 31 35 38 41 51 57 65	17 20 24 27 30 39 47 54 60 66 76 84 92 109 127 152	1.5 1.5 3.1 3.1 3.1 3.1 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.4	1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 3.1 3.1 3.1 3.1 3.1 4.4	0.05 0.08 0.13 0.19 0.31 0.55 1 1.4 2 3 4 5.5 7.4 11.3 16.3 41

---

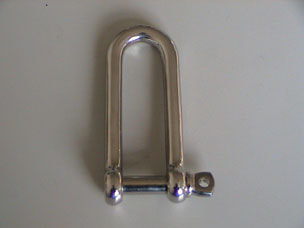

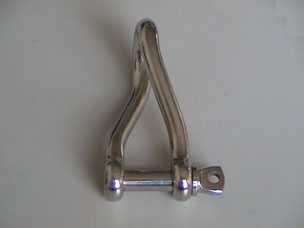

LONG D SHACKLE			TWISTED SHACKLE
size	weight /pc	pcs/carton	size	weight/pc	pcs/carton
4mm 5mm 6mm 8mm 10mm 12mm	0.01kgs 0.02kgs 0.04kgs 0.08kgs 0.16kgs 0.26kgs	1000pcs 800pcs 500pcs 300pcs 160pcs 80pcs	5mm 6mm 8mm 10mm 12mm	0.02kgs 0.03kgs 0.08kgs 0.15kgs 0.24kgs	1000pcs 800pcs 300pcs 150pcs 100pcs

---

---

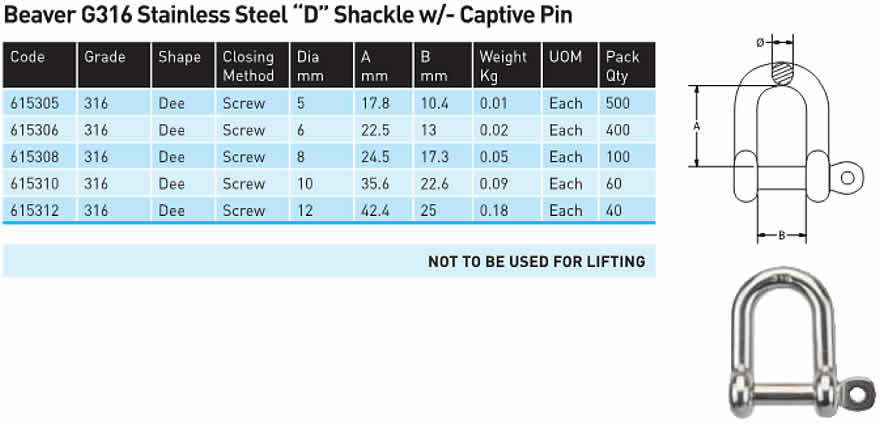

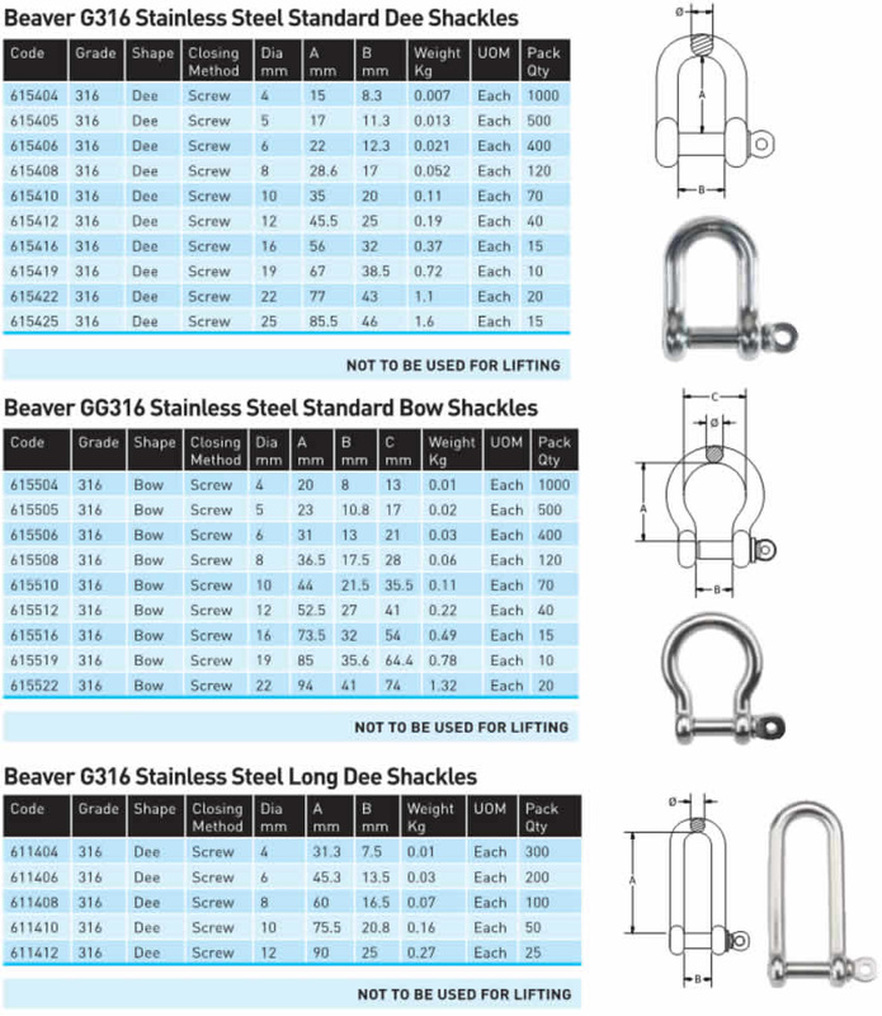

G316 Stainless Steel Dee & Bow Shackles
​

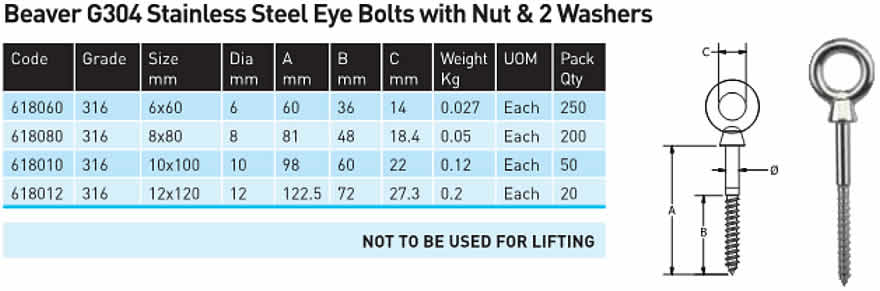

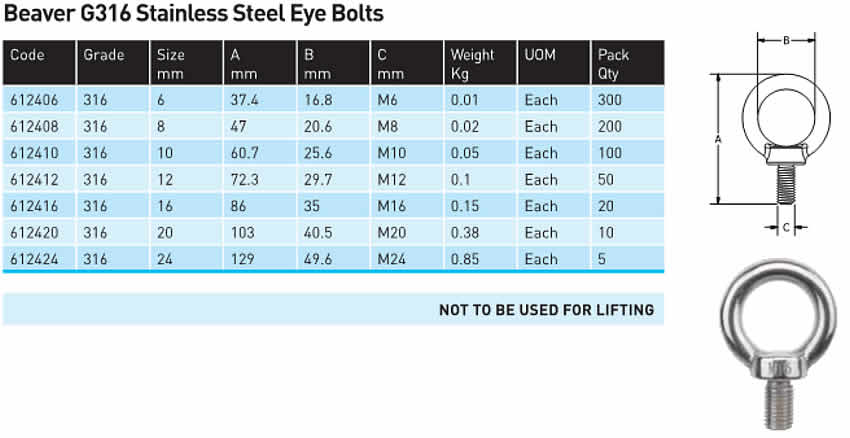

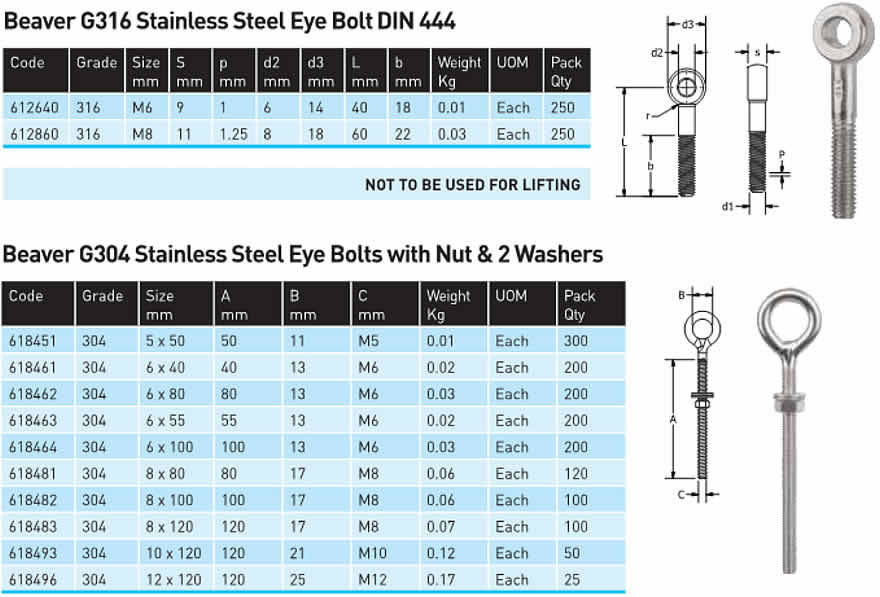

G304 and G316 Stainless Steel Eye Bolts
​

G316 Stainless Steel Eye Nuts
​

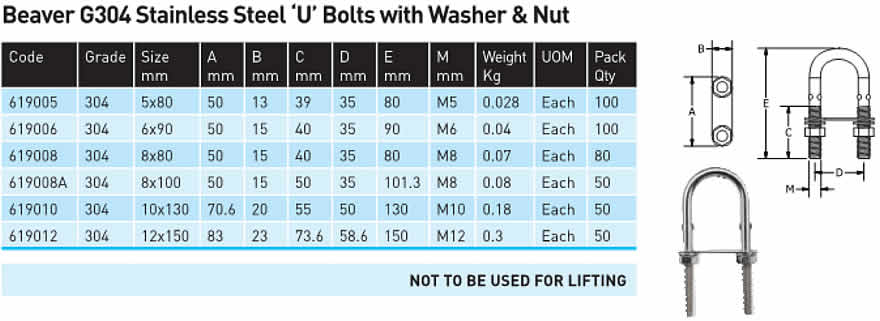

G304 Stainless Steel U Bolts
​

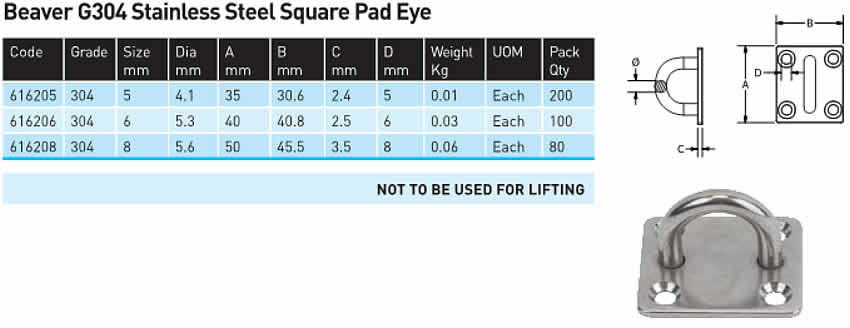

G304  Stainless Steel Square Pad Eye
​

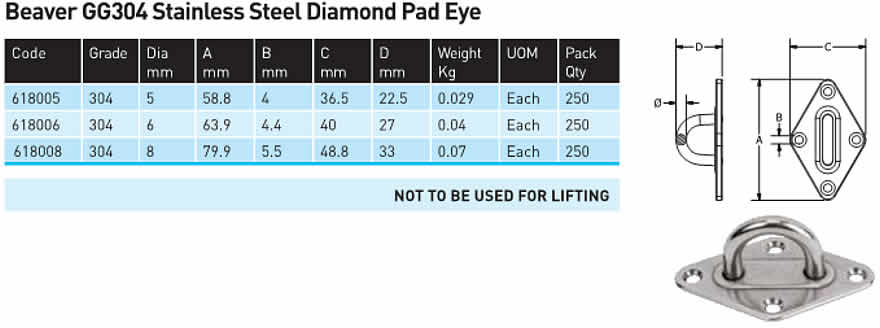

G304 Stainless Steel Diamond Pad Eye
​

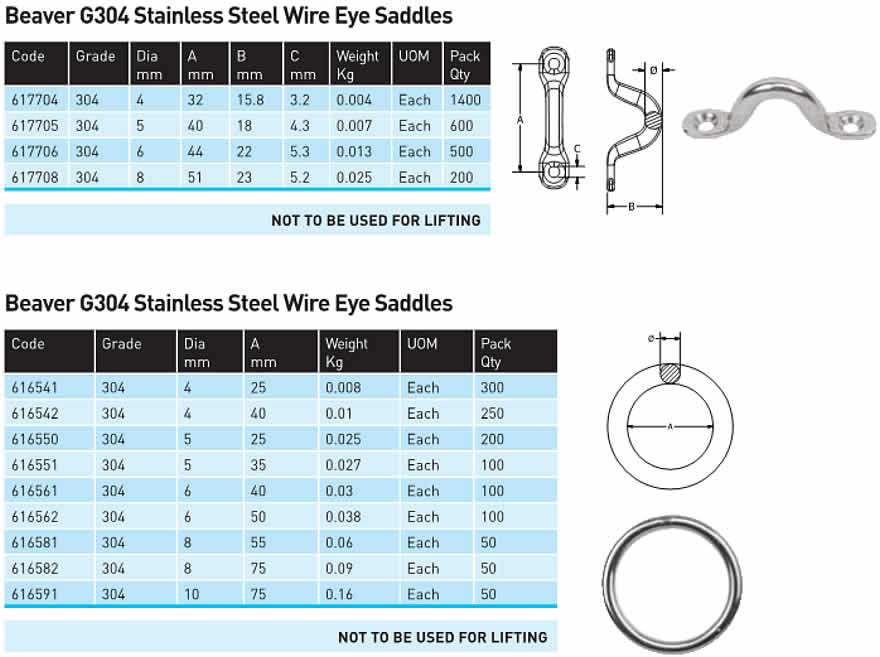

G304 Stainless Steel Wire Eye Saddles
​

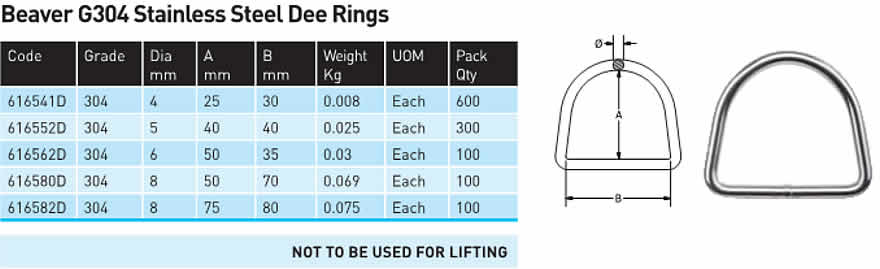

G304 Stainless Steel Dee Rings
​

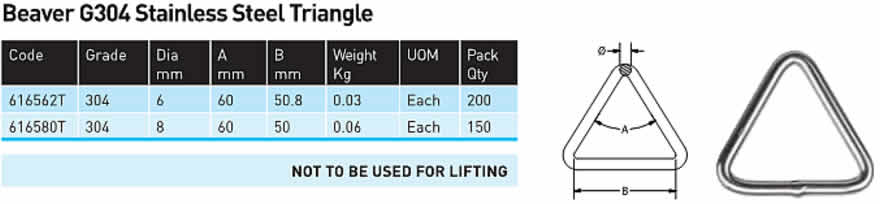

G304 Stainless Steel Triangles
​

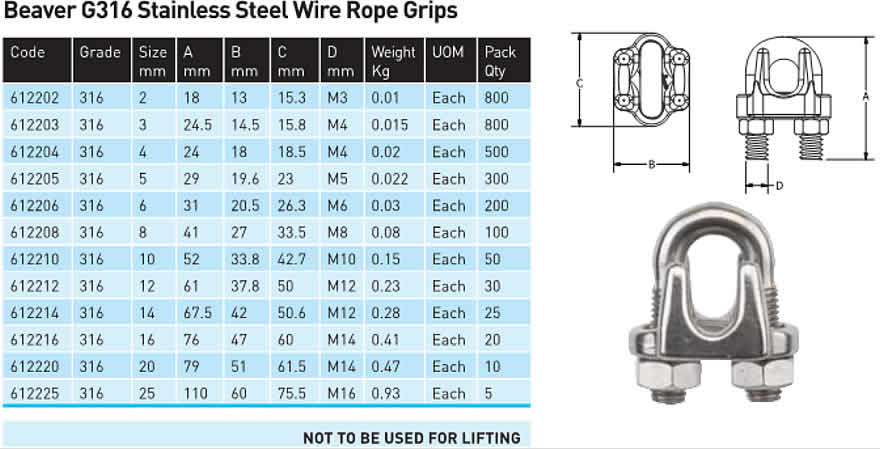

G316 Stainless Steel Wire Rope Grips
​

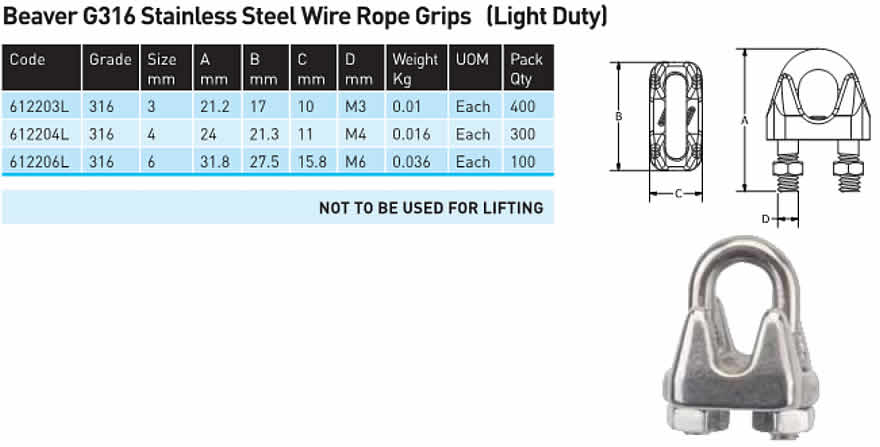

G316 Stainless Steel Wire Rope Grips (Light Duty)
​

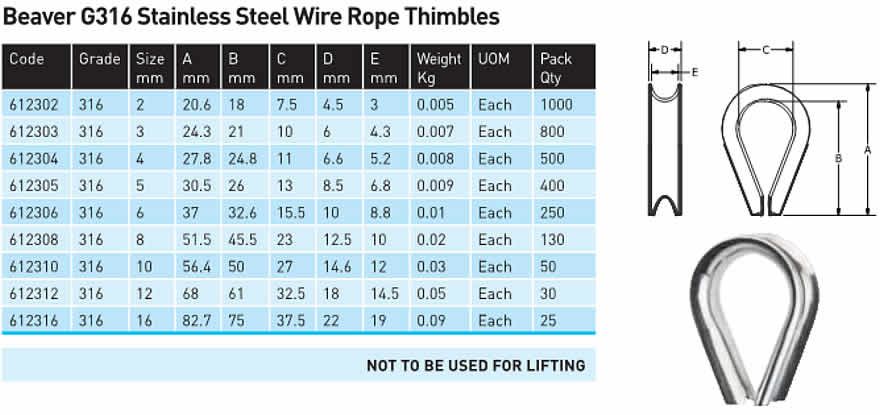

G316 Stainless Steel G316 Wire Rope Thimbles
​
