​4WD Winches

4WD Recovery Winches Spec Sheet
File Size: 995 kb
File Type: pdf
Download File

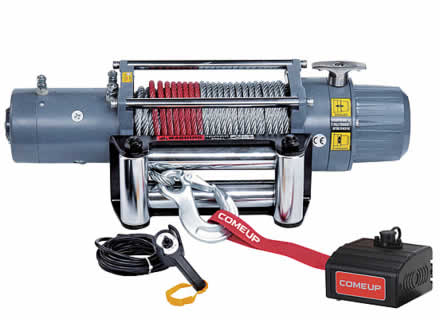

The Comeup Recovery Winches are equipped with a heavy duty motor which delivers superior torque output for self-recovery or utility duty automotive applications.

The Self-Recovery range (DV9i – DV6000S) provides the maximum line pull capacity from 4,800kg to 6,800kg and are all featuring the strongest power for working in off road environments.

The Utility Duty Winch series (DV2500i – DV4500i) are designed to be used as a trailer winch; providing a line pull of up to 2,000kg.
​
They are dexterous, easy to install and the high torque permanent magnet motor delivers high line pull at lower amp draw. Automatic load-holding mechanical failsafe brake ensures strength and reliability.
PRODUCT FEATURES

​DV9i – DV6000S
  • All sealed high performance motor supplies superior torque output and faster line speed.
  • Three stage planetary gearbox delivers the most reliable and durable performance of winch under tough weather conditions.
  • Heavy duty sealed contactor ensures sound waterproof protection.
  • Turn clutch by ergonomic T-handle for rapid rope payo The equally positioned pin holes make it easy to rotate by 36° or 40° increments for special in-bumper applications.
  • Protective thermal sensor LED.
  • Specific design of brake (CBS) outside the drum is ideally suited to heat-sensitive synthetic rope.

DV2500i – DV4500i
  • 12 & 24 Volt reversible motor.
  • Power in and power out.
  • Tough weather resistant housing with integrated solenoid pack.
  • Built-in mechanical safety braking device.
  • Sliding pin and ring gear clutch for rapid wire rope payout.
  • Remote control with 3m cable.
  • Compact and lightweight.


SPECIFICATIONS & DIMENSIONS

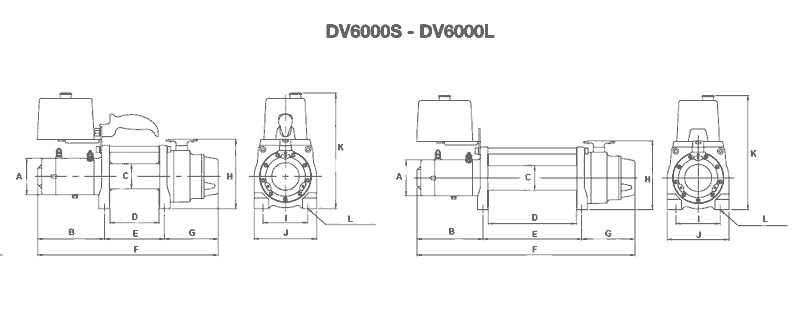

Dimensions: COMEUP DV RECOVERY 4WD WINCHES – DV6000S / DV6000L (in mm)

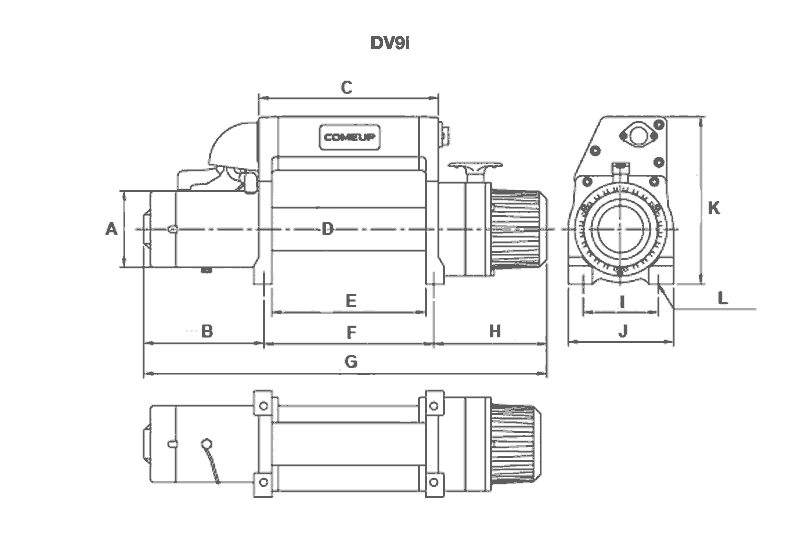

Dimensions: COMEUP DV RECOVERY 4WD WINCHES – DV9i (in mm)
​
MODEL DV9i
A 114
B 179
C 268
D 63.5
E 229
F 254
G 602
H 169
I 114
J 159
K 250
L 4 – 11

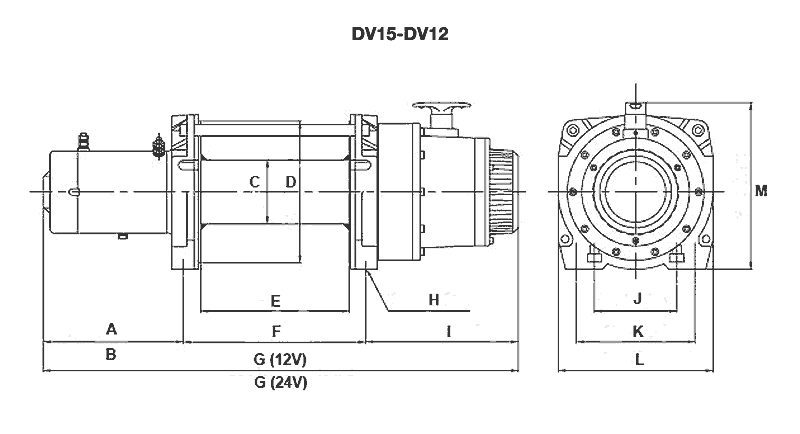

Dimensions: COMEUP DV RECOVERY 4WD WINCHES – DV12 – DV15 (in mm)
​
MODEL DV12 DV15
A 195 195
B 170 170
C 89 89
D 197 197
E 206 206
F 254 254
G (12V) 661 661
G (24V) 636 636
H 8 – 13 8 – 13
I 212 212
J 114 114
K 165 165
L 215 215
M 232 232

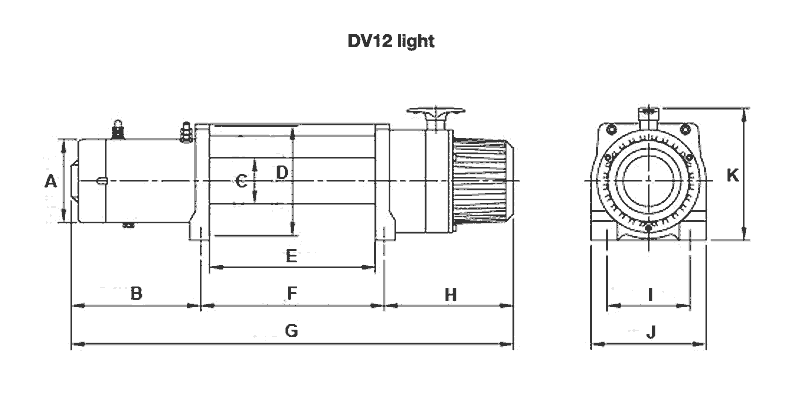

Dimensions: COMEUP DV RECOVERY 4WD WINCHES – DV12 light (in mm)
MODEL DV12 light 12V DV12 light 24V
A Ø114 Ø114
B 179 154
C Ø63.5 Ø63.5
D Ø151.5 Ø151.5
E 229 229
F 254 254
G 612 587
H 179 179
I 114 114
J 159 159
K 182.5 182.5

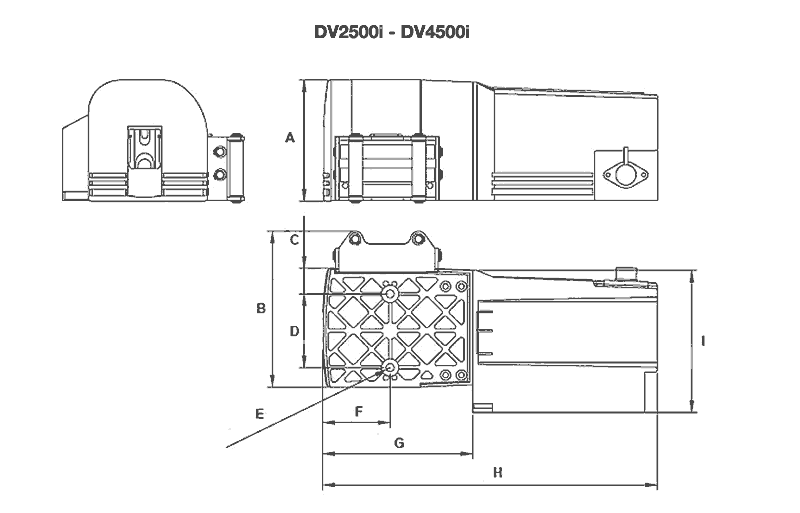

Dimensions: COMEUP DV RECOVERY 4WD WINCHES – DV2400i – DV4500i (in mm)
MODEL DV2400i DV3500i DV4500i
A 153 153 153
B 197 197 197
C 32 32 32
D 93 93 93
E 2-10 2-10 2-10
F 86 86 86
G 190 190 190
H 423 423 423
I 180 180 180

Specifications: COMEUP DV SELF-RECOVERY WINCHES – DV-6000S – DV-15

MODEL DV6000S DV9i DV12 DV12 light DV15
Stock Code 12 Volt PDV600 PDV900 PDV920 PDV920L PDV950
Stock Code 24 Volt PDV605 PDV905 PDV922 PDV925L PDV955
Line Pull (kg) 2,722 4,082 5,443 5,443 6,804
Line Speed without Load (m/min) 8.0 13.4 8.3 8.0 6.9
Wire Rope (Ø mmxm) 7.1 x 24.4 8.3 x 30.5 9.5 x 38 9.5 x 25.0 11.1 x 27.0
Wire Rope Type Galvanised aircraft A7 x 19 Galvanised aircraft A7 x 19 Galvanised aircraft A7 x 19 Galvanised aircraft A7 x 19 6X29-WRC
Drum Size (mmxmm) 63.5 x 125.5 63.5 x 229 89 x 206 63.5 x 229 89 x 206
Net Weight (kg) 17.7 36 40 34 42

Specifications: COMEUP DV UTILITY DUTY WINCHES – DV-2500i – DV-4500i

MODEL DV2500i DV3500i DV4500i
Stock Code 12 Volt PDV250 PDV350 PDV450
Stock Code 24 Volt PDV255 PDV355 PDV455
Line Pull (kg) 1,134 1,588 2,041
Line Speed without Load (m/min) 5.0 6.5 6.5
Wire Rope (Ø mmxm) 4.8 x 15.2 5.5 x 15.2 6.3 x 15.2
Wire Rope Type Galvanised aircraft A7 x 19 Galvanised aircraft A7 x 19 Galvanised aircraft A7 x 19
Drum Size (mm x mm) 54 x 83 54 x 83 54 x 83
Net Weight (kg) 13.5 13.9 14.2
