​Chain Blocks

Vital Chain Blocks - Product Sheet
File Size: 222 kb
File Type: pdf
Download File

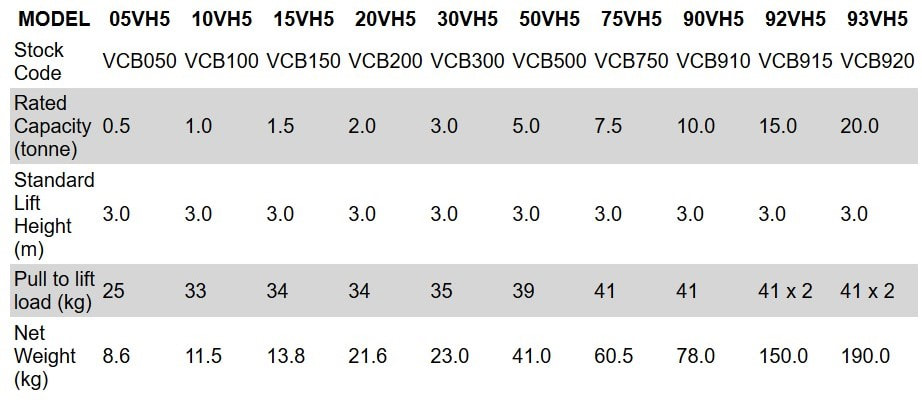

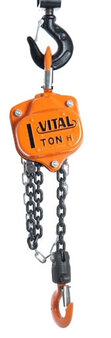

Vital Chain Blocks

Vital is a Japanese brand which is globally recognised for their high quality products.
Their range of chain blocks are suited for many applications in the mining, construction, industrial and automotive industry.

They have proven to be an economical method to lift heavy loads with ease.
The capacities vary from 0.5 tonne to 20 tonne and all chain blocks can be supplied with overload protection for added security of use.

  • Manufactured in Japan using optimum high quality steel which conforms to the strict JIS & ISO regulations.
  • All Vital models are manufactured to comply with AS1418.2.
  • Designed for long-term use while providing the lowest possible per-use cost.
  • Can be supplied close coupled and extra close coupled to girder trolleys to alleviate headroom restrictions.
  • All Vital chain blocks can be supplied with overload protection.
  • Customised lift height are available upon request.
  • Quality caged needle bearings on load sheave and thrust bearings on bottom hook.
  • Hardened alloy steel load chain with embossed identification, marked as to the relevant standards.
  • Load chain exceeds Australian Standards with 5:1 Safety Factor.

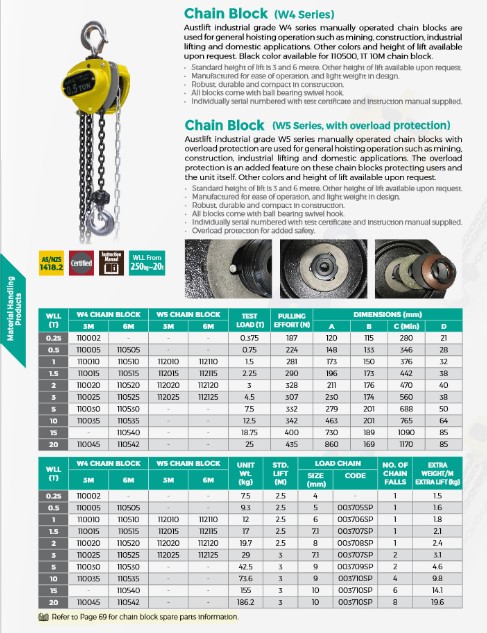

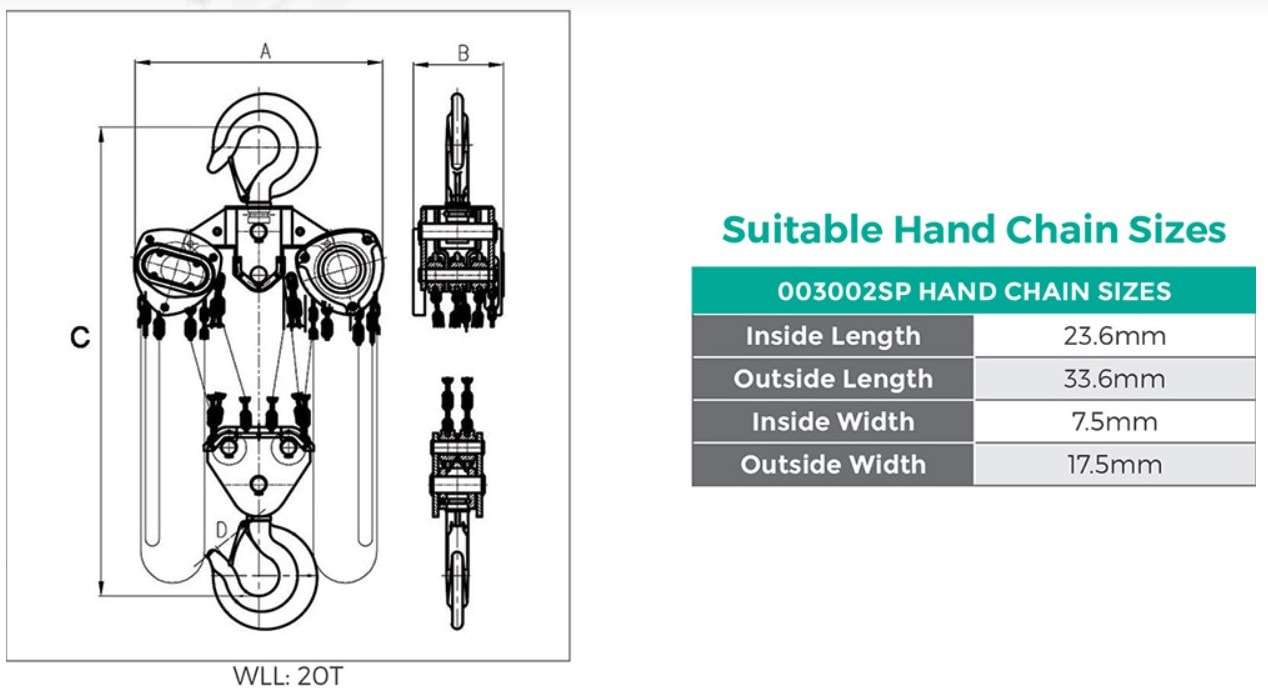

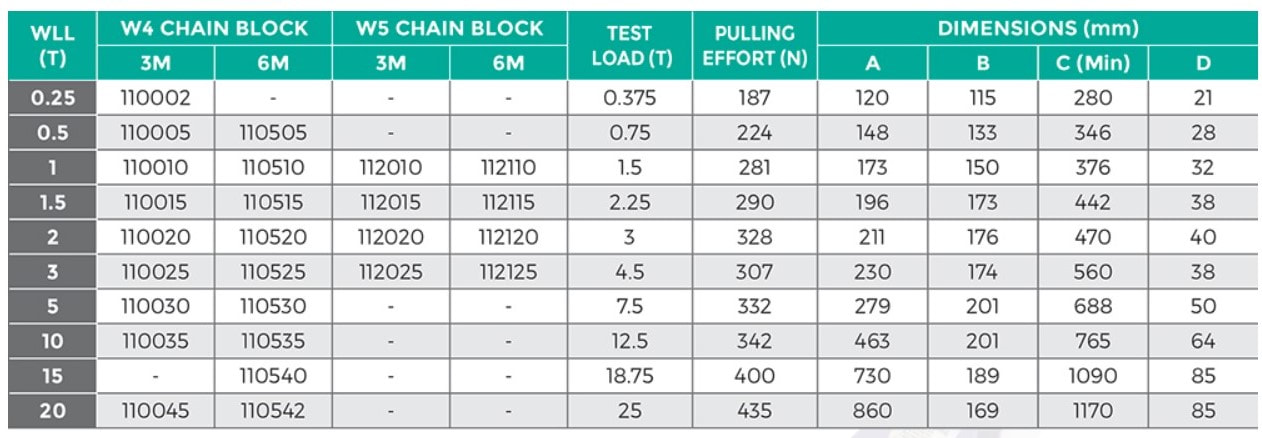

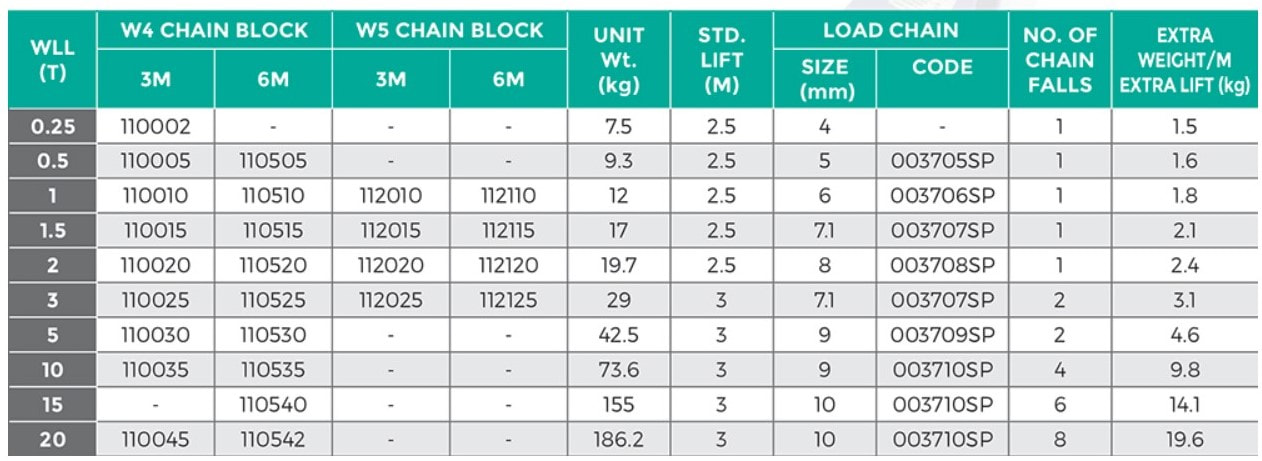

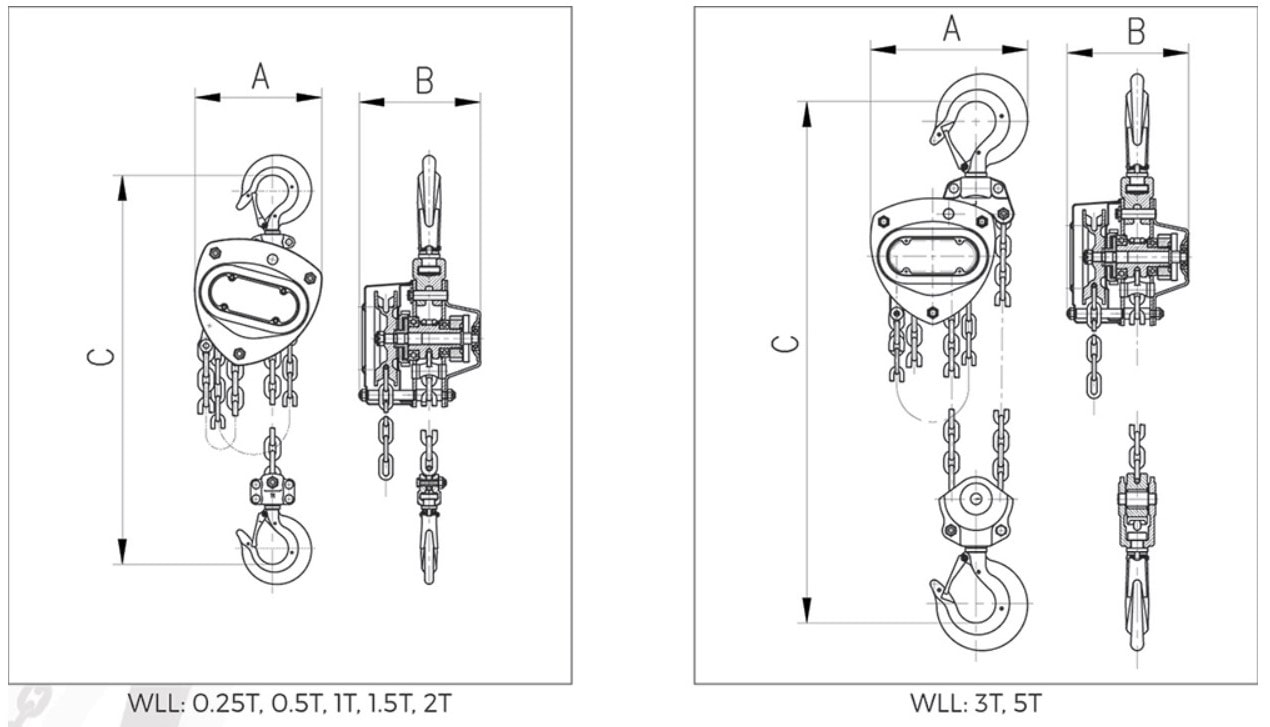

Austlift W5
W5 Industrial Chain Block 1TX3M c/w Load Limit Switch
Download Spec Sheet
File Size: 116 kb
File Type: jpg
Download File
Beaver 3S Chain Blocks
File Size: 1203 kb
File Type: pdf
Download File

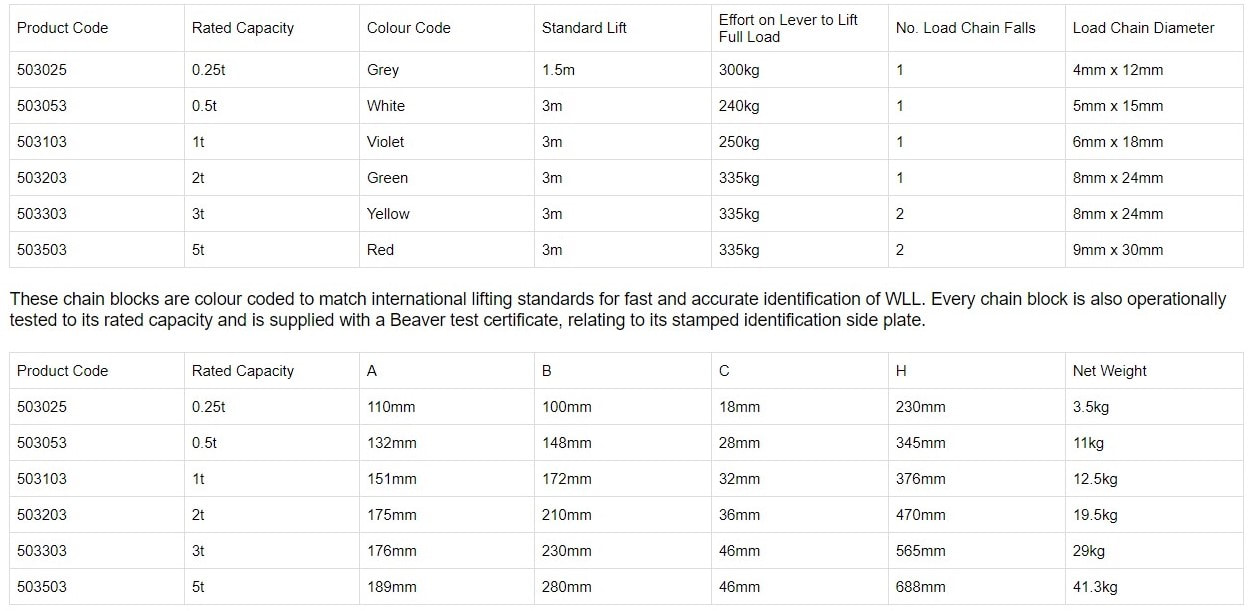

Beaver 3S Industrial Manual Chain Blocks (1.5-3m Standard Lift)
Beaver chain blocks are designed for use on monorails, jibs fixed installations and for maintenance use. They are to be used for vertical lifts only. If they are side loaded or used horizontally, jamming of the loader chain and damage to the blocks may occur.

The Beaver 3S industrial chain block has improved reinforced side covers, made from heavy duty steel to ensure full protection of the vital gears, shafts, and bearings. The load chain is made of high resistance Grade 80 alloy steel that has a black finish, is heat treated, and is calibrated and marked according to ISO 3077 and ISO 1834. Beaver 'ID' plates and rivets are supplied in stainless steel (a non-conductive material) in order to avoid dangerous sparking, making them ideal for underground mining.
